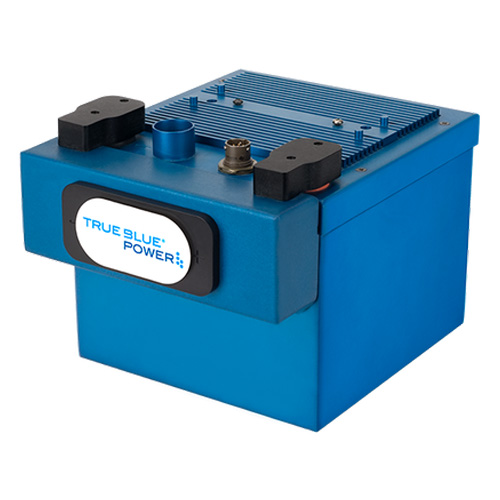

TB17 Advanced Lithium-ion Battery | 26.4 VDC, 17 Ah, Quick Disconnect Kit

TB17 Advanced Lithium-ion Battery | 26.4 VDC, 17 Ah, Quick Disconnect Kit

    MID-CONTINENT INSTRUMENTS AND AVIONICS

    Call For Pricing
    Available to order
    EDMO # 6430017-3
    MFR Part # 6430017-3
    Need help placing an order? Call 800-235-3300 or Contact us

    Product Description

    Start lighter and cut your aircraft battery weight by up to 45% with the TB17 Lithium-ion Aircraft Battery. The True Blue Power battery is TSO certified and offers a 2-year maintenance schedule, saving you time and money. This TB17 main ship battery features a Quick Disconnect kit with an MS3509 connector, and an automatic, built-in heater ensures you’ll have superior, cold-weather performance, down to -40°C.

    Features

    • Quick Disconnect kit included
    • 17 amp-hour battery nominal at 23°C/73.4°F
    • Weighs 16 lbs. — 45% lighter than lead-acid or nickel-cadmium alternatives
    • Advanced NanoPhosphate® lithium-ion cell chemistry — 3x the energy per kilogram when compared to lead-acid and nickel-cadmium cells
    • 7 engine starts in 7 minutes
    • 30 minutes (at 34 amps) for complete recharge when the battery is fully discharged
    • Superior performance at extreme temperatures (-40°C/-40°F to +70°C/+158°F)
    • Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
    • Communicates battery status to the cockpit
    • Higher voltage during engine start — Less wear, less maintenance and increased useful life
    • 2-year maintenance interval — 50 – 90% savings on maintenance costs
    • 8 years (average) useful life
    • Designed and built in Wichita, Kansas, USA

    Specifications

    • Weight:
      16.0 lbs. (7.2 kg)
    • Dimensions:
      7.2 x 7.4 x 6.1 in
    • Capacity:
      17 amp-hour nominal at 23°C/73.4°F
    • Charge Voltage:
      28 VDC nominal
    • Output Voltage:
      26.4 VDC nominal
    • Output Current:
      500A continuous, 840A max
    • Technology:
      Advanced NanoPhosphate® lithium-ion cell chemistry
    • Protection:
      Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting
    • Energy Density:
      64.4 Wh/kg 87.1 Wh/liter
    • Operating Temperature:
      -40˚F to 158˚F ( -40˚C to 70˚C)
    • Configuration:
      7P8S; 7 parallel cells x 8 series modules
    • Maintenance:
      Two-year maintenance interval; offers 50 – 90% savings on maintenance costs
    • Case:
      Anodized aluminum, blue
    • Certification:
      FAA TSO-C179b (Class A-4B) RTCA DO-311A RTCA DO-160G UNDOT/IATA

    Product Codes

    • Mfr Part No
      6430017-3
    • SCHEDULE B CODE
      8506.50.0000
