Emergency Battery Power Supply | 24 VDC, 1 A, 28 Wh, 4-pin circular connector

Product Description

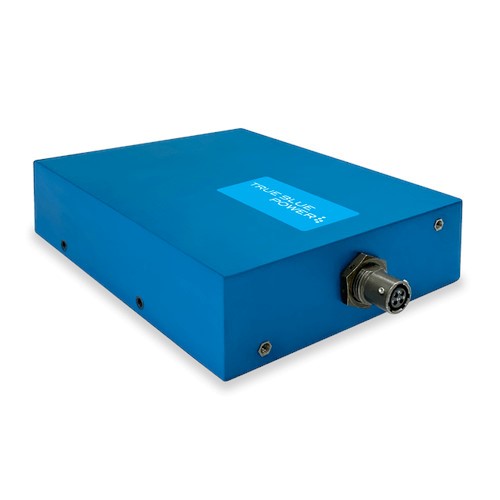

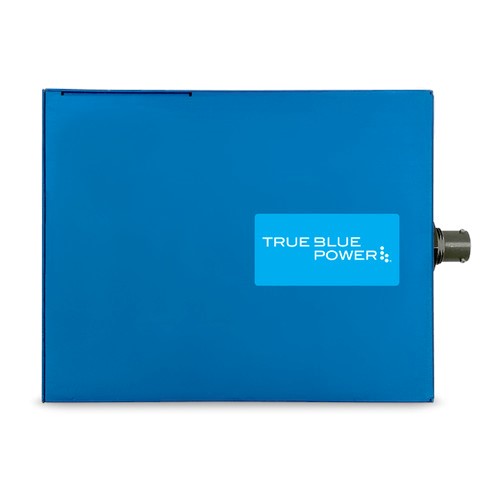

Designed for a 28V electrical bus, the TS28 Emergency Battery Power Supply (EBPS) provides DC power for aircraft loads, such as emergency lighting and other critical equipment when main aircraft power fails. The unit can be fully recharged or maintain existing full charge, via the aircraft's primary power bus.

The TS28 EBPS is designed to provide power to emergency lighting in Citation 550, 560, 650, 680, 680A, and 700 aircraft models, and is a direct replacement for Radiant Battery Power Supplies CBS28-1. The TS28 delivers superior quality, longer lifespan, and cell-swapping capabilities that reduce cost for these aircraft operators.

Specifications

• Specification
  Capacity: 28 Watt-hour
• Input Power:
  26.5–32 VDC
• Output Power:
  24 VDC nominal 3 amps max
• Specification
  Weight: 1.7 lbs
• Dimensions:
  5.5”L x 4.4”W x 1.5”H (without connector)
• Protection:
  Short circuit, over temperature, under-voltage, over-voltage, and EMI filtering
• Direct Replacement:
  Radiant CBS28-1

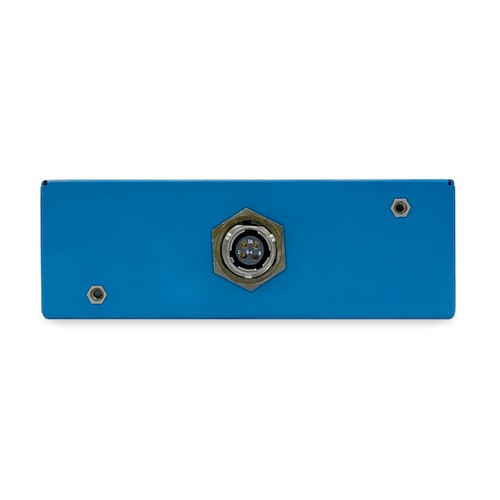

• Mating Connector:
  4-pin Mil-Spec circular-style (MCIA PN 9015514-1)
• Certification:
  Certified to FAA TSO-C173a Qualified to DO-293A and RTCA DO-160G

Product Codes

• Mfr Part No
  6430028-1
• SCHEDULE B CODE
  8504.40.9580
