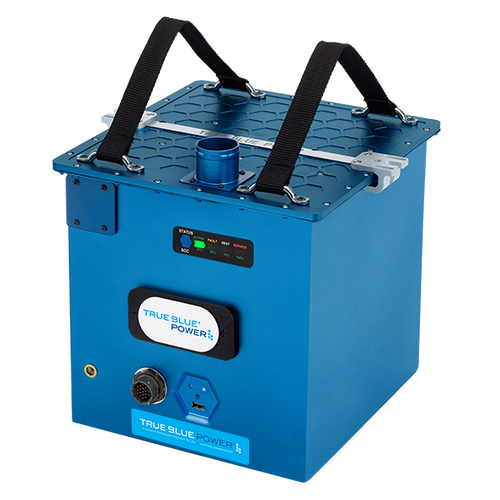

TB50 Lithium-ion Aircraft Battery | 26.4 VDC, 50 Ah, TSO, Quick Disconnect Kit

TB50 Lithium-ion Aircraft Battery | 26.4 VDC, 50 Ah, TSO, Quick Disconnect Kit

TRUE BLUE POWER

Call For Pricing
Available to order
EDMO # 6430050-1
MFR Part # 6430050-1
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The new Gen5 TB50 Lithium-ion Aircraft Battery is a same-size replacement for the industry standard 44 amp-hour battery, while offering more power, less weight and zero maintenance. The TSO-certified TB50 from True Blue Power lasts 8 years and features an automatic, built-in heater. This allows your aircraft to outperform all others in extreme temperatures, from -40°C to +70°C.

Features

  • 0 amp-hour nominal at 23°C/73°F
  • Weighs 43.9 lbs. — up to 50% less than lead-acid and NiCad solutions
  • Advanced NanoPhosphate® lithium-ion cell chemistry
  • Higher voltage during engine start — Less wear, less maintenance and increased useful life
  • Superior high-temperature and cold-weather performance from -40°C to +70°C (-40°F to +158°F)
  • More than 1 amp-hour per pound
  • Automatic internal heater
  • Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
  • ARINC 429, Analog and Discrete communication
  • Built-in Test (BIT) Indicator communicates real-time state-of-charge and state-of-health
  • On-condition maintenance
  • Designed and built in Wichita, Kansas, USA
  • FAA TSO certified

Specifications

  • Weight:
    43.9 lbs. (19.9 kg)
  • Dimensions:
    10.0 x 9.6 x 10.1 in
  • Capacity:
    50 amp-hour nominal (at 23°C/73°F)
  • Charge Voltage:
    28 VDC nominal
  • Output Voltage:
    26.4 VDC nominal
  • Output Current:
    460A continuous (1500A max)
  • Technology:
    Advanced NanoPhosphate® lithium-ion cell chemistry
  • Energy Density:
    66.3 Wh/Kg
  • Specification
    Charge Cu rrent Limiting: Programmable up to 8C or unlimited
  • Operating Temperature:
    -40°C to +70°C (-40°F to +158°F)
  • Configuration:
    21P8S; 7 parallel x 8 in series x 3
  • Battery Life Expectancy:
    8 years (average)
  • Maintenance:
    On-condition
  • Case:
    Anodized aluminum, blue
  • Certification:
    FAA TSO-C179b (Class A-4B) RTCA DO-311A RTCA DO-160G RTCA DO-178C DAL A UNDOT/IATA

Related Products

Product Codes

  • Mfr Part No
    6430050-1
  • SCHEDULE B CODE
    8506.50.0000
