Product Description

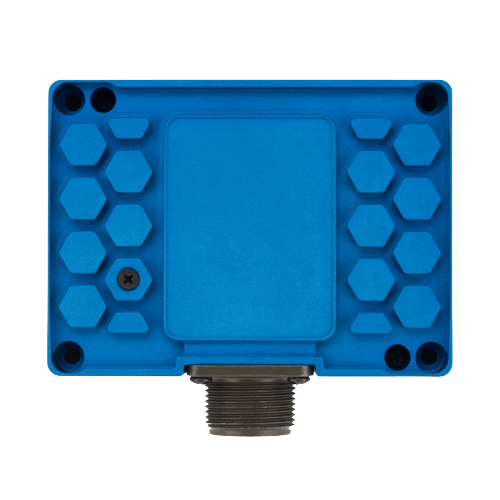

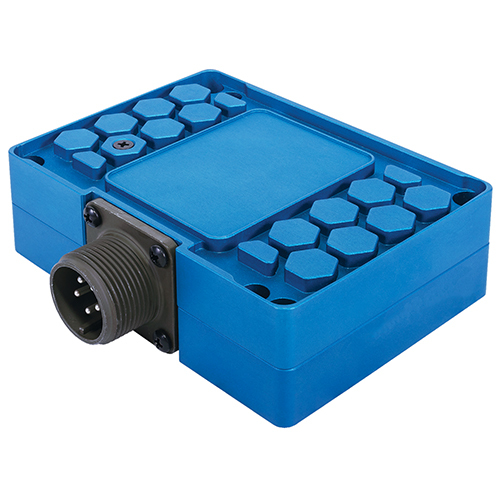

The TC120 DC-to-DC power converter produces 120 watts of DC power from an aircraft's 28 VDC input. Compact and lightweight, the TC120 saves space and reduces weight. It produces enough energy to power electronic equipment throughout the aircraft — including in-seat, cabin, and cockpit power applications.

This TC120 model (EDMO# 6430120-2) includes a remote On/Off switch option.

Features

Supplies 120 watts of DC output power
Adjustable 5 VDC – 18 VDC output voltage
22 VDC – 32 VDC input power
Compact and lightweight design — only 0.65 lb
Input transient, reverse polarity, overload and short circuit protection, and temperature monitoring
95% efficiency
Optional remote On/Off
Mounts in the floor, cabin wall, or outside the pressure vessel

Specifications

Weight:

0.65 lb
Dimensions:

2.75 x 3.75 x 1.29 in
Input Voltage:

22 VDC – 32 VDC
Input Current:

5.0 A, nominal
Output Voltage:

5 VDC – 18 VDC
Output Power:

120 watts
Regulation:

1% load, 2% temperature
Altitude:

55,000 ft
Temperature:

-67°F to 158°F (-55°C to 70°C)
Circuit Protection:

input transient overload short circuit temperature monitoring reverse polarity
Mating Connector

: MCI P/N 9018651 (included)
Case:

Blue anodized aluminum
Certification:

FAA TSO-C71 certified RTCA DO-160G qualified
