TC120 DC-to-DC Converter | 120 Watt, Military Environments & EMI Qualifications

Select an option

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing

Available to order

EDMO # 6430120-3

MFR Part # 6430120-3

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

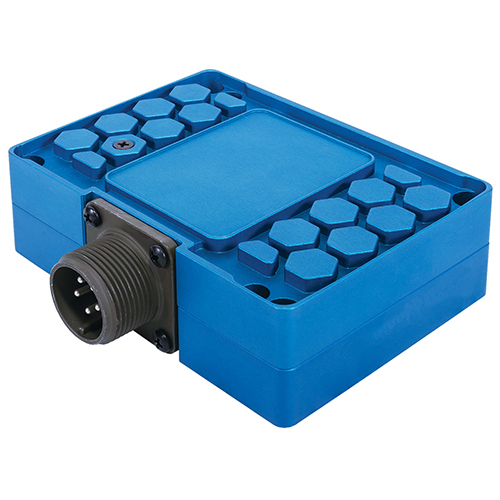

The TC120 DC-to-DC power converter produces 120 watts of DC power from an aircraft's 28 VDC input. Compact and lightweight, the TC120 saves space and reduces weight. It produces enough energy to power electronic equipment throughout the aircraft — including in-seat, cabin, and cockpit power applications.

Features

Military Environments & EMI Qualifications
Supplies 120 watts of 5V to 24V power
Compact and lightweight design — only 0.6 lb
Greater than 90% efficiency
24 VDC — 32 VDC input voltage
5A nominal input current
5 VDC — 24 VDC output voltage
Input transient, overload, and short-circuit protection
Rated temperature range from –65°F to 160°F
FAA TSO-C71 certified and RTCA DO-160G qualified

Specifications

Input Voltage:

24 VDC — 32 VDC
Input Current:

5.0 A, nominal
Output Voltage:

5 VDC — 24 VDC
Output Power:

120 watts
Efficiency:

>90%
Weight:

0.65 lb (0.29 kg)
Altitude:

55,000 ft
Temperature:

-65°F to 160°F (-55°C to 70°C)
Protection:

Input transient, overload, short-circuit protection

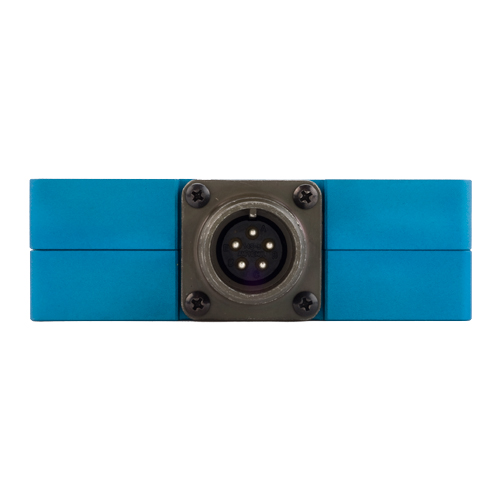

Mating Connector:

MS3106A-14S-5S

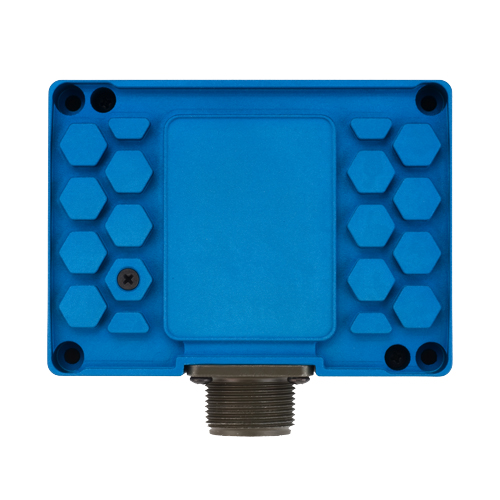

Case:

Blue anodized aluminum
Certification:

FAA TSO-C71 certified RTCA DO-160G qualified MIL-STD-461F MIL-STD-704F MIL-STD-810F
