TA202 High Power USB Charging Port | USB-C, Rear Power Connector, Lighted

Product Description

The TA202 USB series high power USB charging port converts 10 VDC to 32 VDC volts from the aircraft to a standard 5 volt power that can charge any electronic device that uses a USB connector for charging — including cell phones, GPS devices, and tablets. The TA202 provides one or two, USB-A or USB-C ports and can be mounted in a variety of locations throughout the aircraft. This unit is certified to FAA TSO C71 and qualified to multiple RTCA DO-160 requirements which provides confidence and allows installation in the cockpit or cabin.

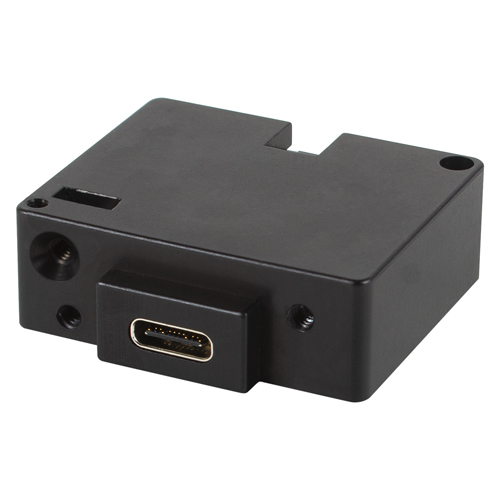

This TA202 (EDMO# 6430202-17) has a USB-C connector in the front, a rear power input connector, and is lighted.

Specifications

• Weight:
  0.8 oz (23 g)
• Dimensions:
  1.5 x 0.52 x 1.25 in
• Input Voltage:
  10 VDC – 32 VDC
• Input Power:
  18 W per port, maximum
• Output Voltage:
  5 VDC ±0.25 per port
• Output Current:
  3.0 amps per port
• USB Connector:
  Single Type-C
• Power Input:
  Rear
• Mating Connector Kit:
  MCI P/N 9017960 (included)
• Mounting:
  In-seat, cabin, cockpit; front or rear mount
• Certifications
  : FAA TSO C71 certified RTCA DO-160G qualified

Product Codes

• Mfr Part No
  6430202-17
• ECCN
  9A991
• SCHEDULE B CODE
  8504.40.7001

Documentation

• Installation Manual
• Technical Drawing
