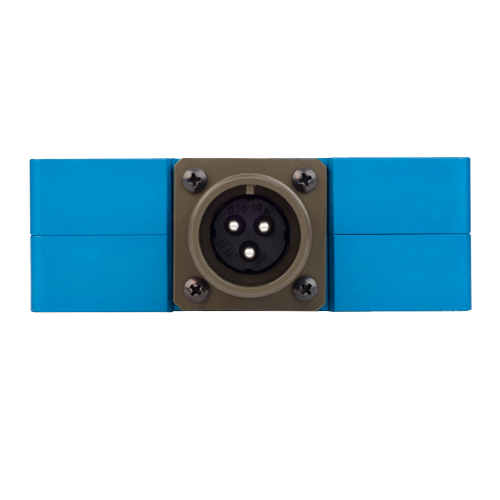

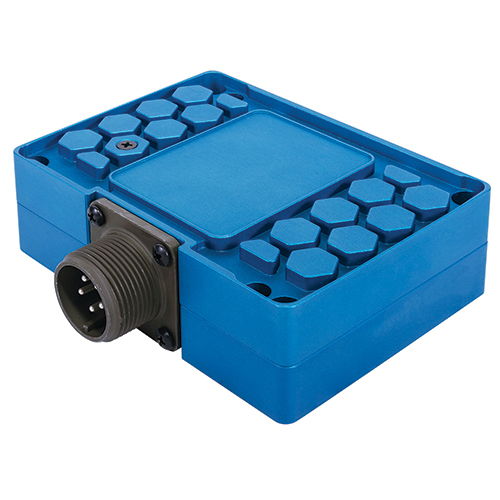

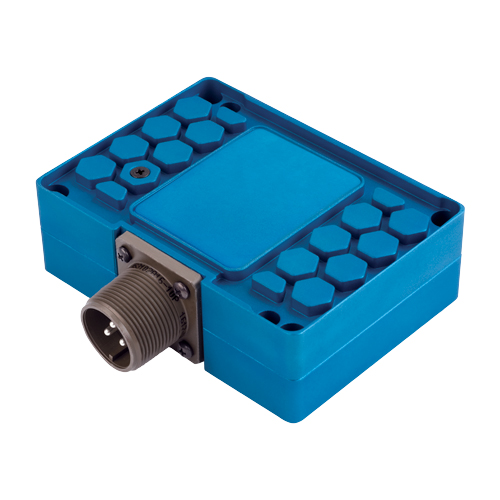

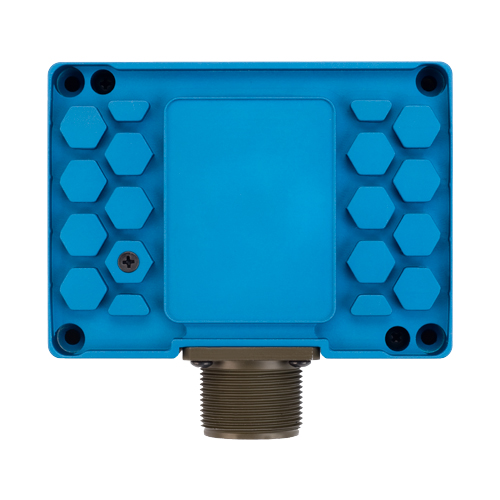

TC230 DC-to-DC Step-up Converter | 230 Watt, Includes Remote On/Off Option

Select an option

TRUE BLUE POWER

Call For Pricing

Available to order

EDMO # 6430234-2

MFR Part # 64300234-2

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TC230 DC-to-DC Step-up Converter produces 230 watts from an aircraft's 14-volt system for powering 28-volt avionics, instruments, and accessories — including radios, GPS, and electronic equipments. This 230 watt step-up converter is suitable for nearly any common general, business, or commercial aviation applications.

This TC230 model (EDMO# 6430234-2) includes a remote On/Off switch option.

Features

Supplies 230 watts of DC power
28 VDC output
Lightweight – only 0.70 lb
Input transient, overload and short circuit, reverse polarity protection, and temperature monitoring
90% nominal efficiency
No cooling required
FAA TSO C71 certified and RTCA DO-160G qualified
Designed in Wichita, Kansas, USA

Specifications

Weight:

0.7 lb
Dimensions:

2.75 x 3.75 x 1.29 in
Input Voltage:

10 VDC – 18 VDC
Input Current:

18 A, nominal
Output Voltage:

28 VDC
Output Power:

230 watts
Altitude:

55,000 ft
Temperature:

-67°F to 158°F (-55°C to 70°C)
Protection:

Input transient, overload and short circuit, temperature monitoring, reverse polarity
Remote Control:

Remote On/Off, included
Mating Connector:

P/N: 9018655
Case:

Blue anodized aluminum
Certification:

FAA TSO C71 certified RTCA DO-160G qualified
