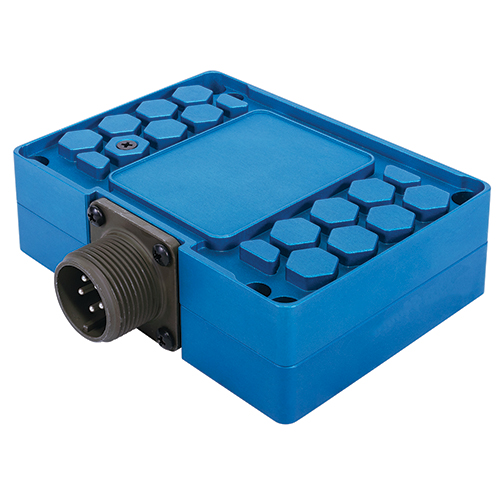

TC240 DC-to-DC Converter | 240 Watt

Select an option

TRUE BLUE POWER

Call For Pricing

In stock

EDMO # 6430240-1

MFR Part # 6430240-1

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TC240 DC-to-DC Converter produces 240 watts of power from the aircraft's 28-volt VDC input. It features a variable output voltage ranging from 5 VDC – 18 VDC for powering electronic equipment throughout the aircraft — including in-seat, cabin and cockpit power applications. The TC240 DC power converter is suitable for nearly any common general, business, or commercial aviation applications

Features

Supplies 240 watts of DC power
Adjustable 5 VDC - 18 VDC output
Lightweight – only 0.70 lb
Input transient, overload and short circuit protection, reverse polarity protection, and temperature monitoring
95% efficient
No cooling required
Mounts in the floor, cabin wall, or outside the pressure vessel
Designed in Wichita, Kansas, USA

Specifications

Weight:

0.7 lb
Dimensions:

2.75 x 3.74 x 1.29 in
Input Voltage:

22 VDC – 32 VDC
Input Current:

10.0 A, nominal
Output Voltage:

5 VDC – 18 VDC, adjustable
Output Power:

240 watts
Altitude:

55,000 ft
Temperature:

-67°F to 158°F (-55°C to 70°C)
Protection:

Input transient, overload and short circuit protection, temperature monitoring, reverse polarity
Remote Controls:

Remote On/Off optional
Mating Connector:

MCI P/N 9018654 (included)
Case:

Anodized aluminum, blue
Certification:

FAA TSO-C71 certified RTCA DO-160G qualified
