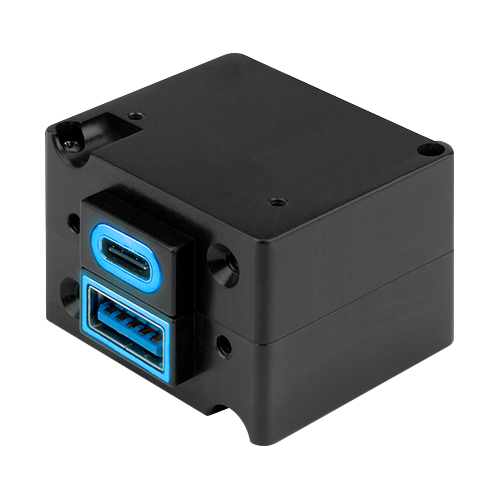

TA245 Series USB Charger | USB-C (45W)/USB-A (36W), 3 A, 12–32 VDC in, Rear Connector, Lighted

Product Description

Charge your personal electronic devices faster with TA245 Series USB Chargers. The TA245 is compatible with any aircraft running 14-volt and 28-volt systems. It delivers up to 45 watts of power to phones, tablets, EFBs and laptops.

The TA245 Series features USB Power Delivery (PD) and ultra-fast charging Programmable Power Supply (PPS) technology. PPS functionality allows the charger to dynamically adjust voltage in small increments, optimizing power delivery based on the device’s specific needs. This ensures a faster, more efficient charge and extends device battery life.

True Blue Power offers more than 30 USB configurations and mounting options for easy in-seat, cabin, cockpit and galley installation. The ultra compact TA245 is a direct replacement for any True Blue Power chargers. They feature adjustable halo ring lighting, and optional faceplates and adapter plates are available.

This TA245 Series USB Charger (EDMO# 6430245-11) has USB-C/USB-A ports, rear connectors, and is lighted.

Specifications

• Weight:
  1.8 oz (52 g)
• Dimensions:
  1.5 x 1.03 x 1.25 in
• Output Power:
  USB-C; 45 W max per port USB-A; 36 W max per port
• Output Voltage:
  USB-C; 3.3 – 20 VDC @ up to 3.0 A per port USB-A; 3.6 – 12 VDC @ 3.0 A per port
• Output Current:
  3.0 amps per port
• Input Power:
  52 W max per port
• Input Voltage:
  12 – 32 VDC
• USB Connector:
  Dual USB-A / USB-C
• Power Input:
  Rear
• Mating Connector Kit:
  MCI P/N 9017960 (included)
• Mounting:
  Front or rear; faceplates and adapter plates (optional)
• Installation:
  In-seat, cabin, cockpit and galley
• Case:
  Anodized aluminum, black
• Certification:
  FAA TSO C71 pending EASA ETSO C71 pending RTCA DO-160G pending

Product Codes

• Mfr Part No
  6430245-11
• SCHEDULE B CODE
  8504.40.9580
