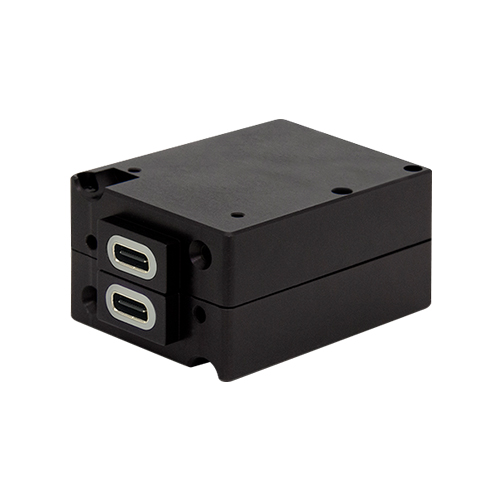

TA360-CC MAX Power USB Charger | Dual USB-C PD, 60W, Non-Lighted

TA360-CC MAX Power USB Charger | Dual USB-C PD, 60W, Non-Lighted

    MID-CONTINENT INSTRUMENTS AND AVIONICS

    Call For Pricing
    Available to order
    EDMO # 6430360-3
    MFR Part # 6430360-3
    Need help placing an order? Call 800-235-3300 or Contact us

    Product Description

    The TA360 Series is an ultra-fast charging port able to power new and future devices, delivering 60 watts of USB power per PD port. USB Power Delivery (PD) is the fastest charging technology available, providing 4 times more power than traditional USB-A and USB-C chargers.

    Version (EDMO# 6430360-3) is non-lighted, configured with two USB-C charging ports, and rear power input.

    Features

    • 3.0 amps per port output current
    • 22 – 32 VDC input voltage
    • Delivers up to 60 watts of power per PD port
    • USB-C connectors dual configuration
    • Compatible with USB-C PD devices
    • Charge one or two devices simultaneously at maximum power
    • Short circuit, power surges and over temperature protection
    • In-seat, cabin, cockpit and galley applications

    Specifications

    • Weight:
      2.5 oz
    • Dimensions:
      1.5 x 1.03 x 2.0 in
    • Input Voltage:
      22 VDC – 32 VDC
    • Input power:
      66 W per port (maximum)
    • Output Voltage:
      5, 9, 15, 20 VDC per port (variable)
    • Output Power:
      60 W per port (maximum)
    • Charging Port Type:
      USB-C
    • Mating Connector Kit:
      p/n: 9017960 included
    • Mounting:
      Front or rear
    • Certification:
      RTCA DO-160G

    Related Products

    Product Codes

    • Mfr Part No
      6430360-3
