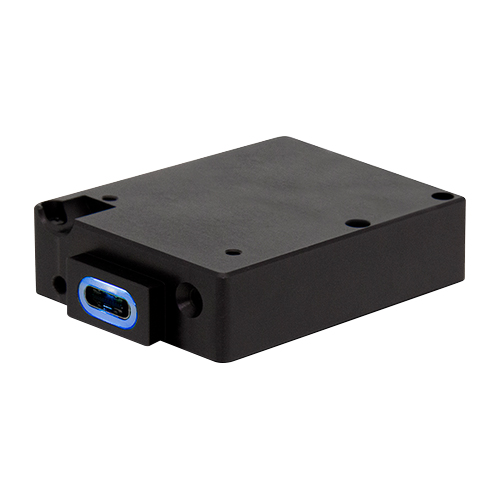

TA360-CDL MAX Power USB Charger | USB-C PD, 100W, Lighted, Data Passthrough

Product Description

Charge your electronics faster. This lighted, USB-C PD charger features the latest USB-PD Technology and delivers up to 100 watts of power per port. Now available with data passthrough, it enables easy communication between devices. This MAX Power USB charger is easy to install in the cabin, cockpit and galley and features a convenient rear connector. It is also TSO certified.

Specifications

• Weight:
  1.3 ounces (37 grams)
• Dimensions:
  1.5 x 0.52 x 2.0 in
• Input Voltage:
  22 – 32 VDC
• Input Power:
  100 W per port (maximum)
• Output Voltage:
  5 – 20 VDC per port (variable)
• Output Power:
  100 W per port (maximum)
• Output Current:
  5.0 amps per port
• Data Speed:
  480 Mbps (maximum)
• USB Connector:
  Single USB-C PD
• Mating Connector Kit:
  MCI P/N 9017960, 9017960-1 (included)
• Mounting:
  Front or rear; faceplates and adapter plates (optional)
• Installation:
  In-seat, cabin, cockpit and galley
• Case:
  Anodized aluminum, black
• Certification:
  FAA TSO C71 EASA ETSO C71 RTCA DO-160G

Product Codes

• Mfr Part No
  6430360-77
• ECCN
  9A991
• SCHEDULE B CODE
  8504.40.9580
