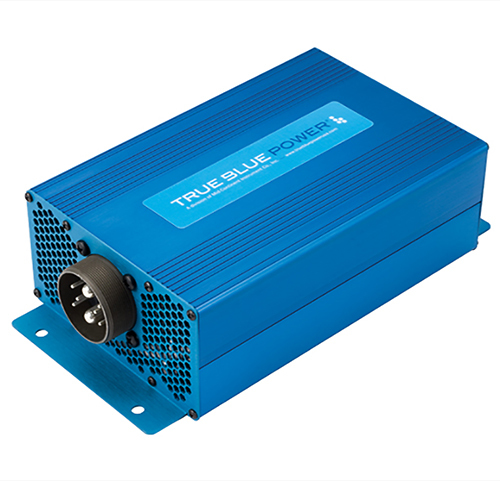

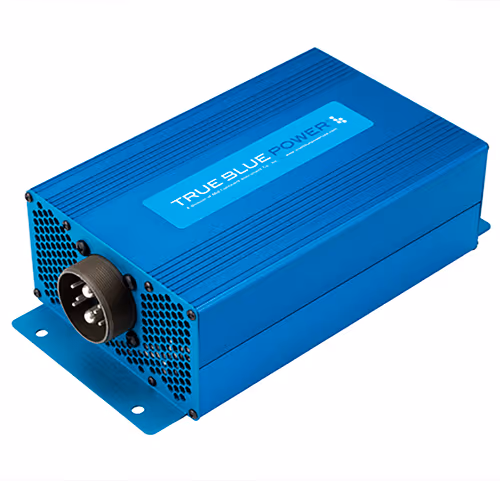

TI2000 DC-to-AC Inverter | 115 VAC, 60 Hz

Select an option

TRUE BLUE POWER

Call For Pricing

Available to order

EDMO # 6432000-1

MFR Part # 6432000-1

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TI2000 DC-to-AC Inverter provides 2,000 watts of power for cabin and galley accessories — including entertainment systems, person electronic devices, microwave ovens, and coffee makers. The TI2000 is capable of three-phase operation to produce 6,000 watts of power.

Features

Supplies 2,000 watts of wall outlet power
Provides 6,000 watts in three-phase operation
Ideal for emergency medical equipment, special mission, and VIP cabin configurations
Lightweight — only 7.7 lb
93% efficient
Input transient, overload and short-circuit protection — up to 150% of rated load without damage
Optional remote On/Off
Designed and built in Wichita, Kansas, USA

Specifications

Weight:

7.7 lb
Dimensions:

6.32 x 12 x 3.46 in
Model Number:

TI2000
Input Voltage:

20 VDC – 36 VDC
Input Current:

80A at 28 VDC
Output Voltage:

115 VAC ±3%
Output Frequency:

60 Hz ±0.1%
Output Power:

2,000 VA
Output Waveform:

Single phase, true sine wave, < 3% total harmonic distortion
Altitude:

55,000 ft
Humidity:

Tested to greater than 95% for 10 days, temperature cycle of 75°F to 160°F
Temperature:

-67°F to 158°F (-55°C to 70°C)
Mating Connector:

P/N 9018784-1 P/N 9018550-2 (cable clamp / backshell)
Case:

Anodized aluminum extrusion, blue
Certificate:

FAA TSO-C73 certified EASA ETSO-C73 certified RTCA DO-160G qualified
