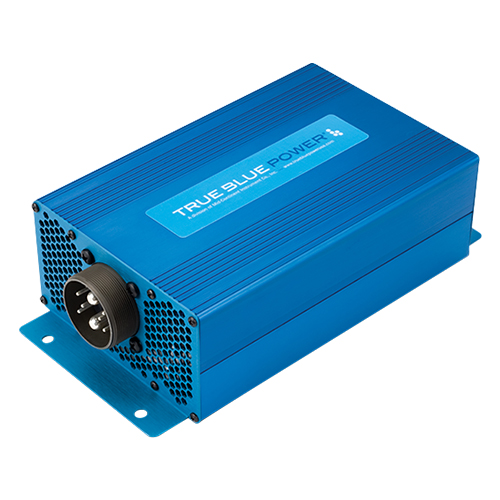

TC2000 AC-to-DC Voltage Converter | 2000 Watts, 115 VAC, 28 VDC

TC2000 AC-to-DC Voltage Converter | 2000 Watts, 115 VAC, 28 VDC

TRUE BLUE POWER

Call For Pricing
Available to order
EDMO # 6432001-1
MFR Part # 6432001-1
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TC2000 is ideal for aircraft with AC electrical systems that require 28-volt DC power for executive interiors, airline and passenger configurations. This powerful voltage converter delivers 2,000 watts of DC power to in-flight entertainment systems, interior and exterior lighting, and in-seat, cabin and cockpit USB power. This converter is TSO-certified and engineered with input transient, short circuit and overload protection up to 110% of the rated load.

Features

  • Supplies 2,000 watts of 28-volt DC power
  • Lightweight — 9.9 lbs
  • Input transient, temperature monitoring, short circuit and overload protection (up to 110% of rated load without damage)
  • 88 – 90% efficiency
  • Remote On/Off

Specifications

  • Weight:
    9.9 lbs (4.5 kg)
  • Dimensions:
    14.00 x 6.32 x 3.46 in (355.60 x 160.53 x 87.88 mm)
  • Input Voltage:
    100–250 VAC, 47–800 Hz
  • Input Current:
    21 A Nominal
  • Output Voltage:
    28 VDC ± 0.4 VDC
  • Output Power:
    2,000 watts
  • Altitude:
    35,000 ft
  • Temperature:
    -67°F to 158°F (-55°C to 70°C)
  • Mating Connector:
    9018993-1 9018550-2
  • Case:
    Anodized aluminum extrusion, blue
  • Certification:
    FAA TSO-C71 certified RTCA DO-160G qualified

Product Codes

  • Mfr Part No
    6432001-1
  • SCHEDULE B CODE
    8504.40.9530
