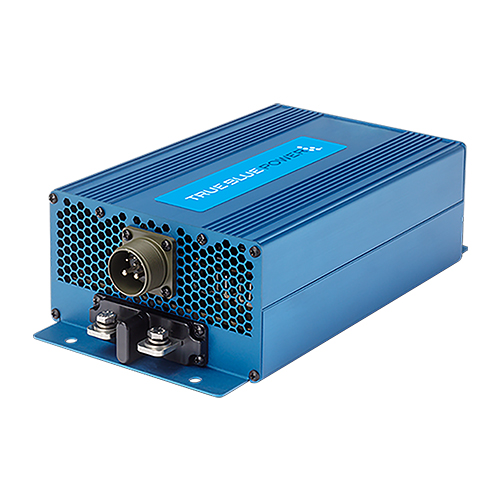

TC6500 DC-to-DC Voltage Converter | 270 VDC to 28 VDC, 6500 W

TC6500 DC-to-DC Voltage Converter | 270 VDC to 28 VDC, 6500 W

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing
Available to order
EDMO # 6436500-1
MFR Part # 6436500-1
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The high voltage TC6500 converts 270 VDC to 28 VDC to power avionics and related systems. This DC-to-DC converter is compact, lightweight and easy to install inside or outside of the pressure vessel. It has 96% peak efficiency and features an overload capacity up to 110% of rated power without damage.

Features

  • High Voltage. High Efficiency. Low Weight.
  • 6,500 watts output power
  • 28.7 VDC ± 0.4 VDC output voltage
  • 96% efficiency
  • Remote control
  • Three brushless, temperature-controlled and speed-controlled fans; Thermostatic On/Off control
  • Up to 110% of rated power without damage overload capacity
  • Input transient, temperature monitoring, short circuit and over current protection
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty

Specifications

  • Weight:
    10.4 lbs (4.7 kg)
  • Dimensions:
    12.0 x 6.3 x 3.5 in
  • Input Voltage:
    165 – 320 VDC
  • Input Current:
    26 A Nominal
  • Output Voltage:
    28.7 VDC ± 0.4 VDC
  • Output Power:
    6,500 watts
  • Altitude:
    55,000 feet
  • Temperature:
    -67°F to 158°F (-55°C to 70°C)
  • Mating Connector:
    9019803-8, 9019803-9
  • Case:
    Anodized aluminum extrusion, blue
  • Certification:
    FAA TSO-C71 pending RTCA DO-160G pending

Related Products

Product Codes

  • Mfr Part No
    6436500-1
  • SCHEDULE B CODE
    8504.40.9530
