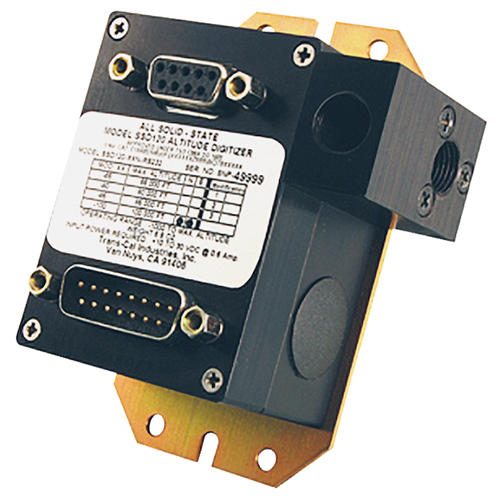

SSD120 High Altitude Nano Encoder | Extended Temperature, RS-232, 65,000 ft

SSD120 High Altitude Nano Encoder | Extended Temperature, RS-232, 65,000 ft

TRANS-CAL INDUSTRIES

EDMO#: 65NE-RS232

MFR#: SSD120-65NE-RS232

Description

The SSD120-(XX) Series High Altitude Nano Encoders are all solid-state devices that measure air pressure and convert the measurements into the ICAO parallel data for pressure altitude transmission via ICAO pressure altitude Gray Code output. These Nano encoders also provide altitude data to ADS-B, GPS, transponders, autopilots, and other navigational devices with two asynchronous RS232 outputs for which the serial data protocol can be individually selected. The user has multiple resolution settings to choose from. Typically, the altitude data is set to 100 feet or 10 feet.

Features

This High Altitude Nano Encoder (EDMO# 65NE-RS232) includes:

  • -1,000 ft — 65,000 ft altitude range
  • Extended temperature range: -55° to 70°C
  • Altitude Digitizer with RS232 Ports
  • 15 Pin D-Subminiature Mating Connector (1 ea.)
  • 15 Pin Connector Back Shell (1 ea.)
  • 9 Pin D-Subminiature Mating Connector (1 ea.)
  • 9 Pin Connector Back Shell (1 ea.)
  • 1/8 NPT Nylon tube fitting (1 ea.)
  • 1⁄4-inch Tube Polypropylene tee fitting (1 ea.)
  • 1/8-27NPT Brass Plug (1 ea.)

Features:

  • Dual 1/8-27 NPT static port inlets
  • One ICAO pressure altitude Gray code output
  • Optional two or five RS-232 compliant data outputs
  • Serial ports may be installer configured to transmit separate data protocols (message and baud data)
  • Power, ground, and data I/O lines provided on industry standard D-miniature connectors
  • Constructed with corrosion-resistant aluminum housing

Specifications

Weight:
5.9 oz (low altitude)
6.3 oz (high altitude)

Altitude ceiling:
30,000 to 42,000 ft (low altitude)
50,000 to 100,000 ft (high altitude)

ICAO Gray Code output:
Yes

RS-232 output:
Yes (except for SSD120-(XX)N model)

RS-485 output:
No (except for SSD120(XX)N-RS model)

Operating voltage:
12VDC @ 220mA / 28VDC @ 270mA (low altitude)
12VDC @ 55mA / 28VDC @ 60mA (high altitude)

Low operating temperature:
-20°C / -55°C (E models)

High operating temperature:
70°C

Wet environment:
No

Electrical Connector:
D-Subminiature 15-pin, SSD120-(XX)N
D-Subminiature 15-pin & 9-pin, -RS232 (low/high models)
D-Subminiature 15-pin plug & 15-pin recpt, -RS models
Static line connection: Dual 1/8-27NPT (low altitude)
Dual 1/8-27NPT or 1/8 Tube Swivel Fitting (high altitude)

Approvals:
TSO-C88a
ETSO-C88a
MIL-STD-704E
RTCA DO-160E

Product Codes

Mfr Part No :

SSD120-65NE-RS232

ECCN :

7a994

ETSO :

C88A

SCHEDULE B CODE :

9014.20.6000

TSO :

C88A
