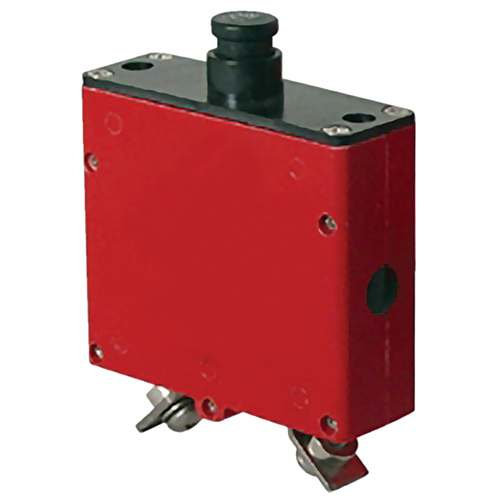

6752-12 Series Circuit Breaker | 35 Amp Rating
KLIXON
EDMO#: 6752-12-35
MFR#: 6752-12-35
VERSION
EDMO#
MFR#
PRICE
Description
The 6752-12 series circuit breaker is a 2-1/2 to 65 amp, single phase, ambient compensated circuit breaker. This thermal-magnetic circuit breakers are designed and manufactured to meet the more stringent military standards of modern aircraft electrical systems. The interrupting capacity, vibration resistance, and longer cycling life of the 6752-12 series exceed previous military standards. In addition, the 6752-12 series provide ambient compensation, fault coordination of all ratings, and an option for auxiliary circuits.
This part (EDMO# 6752-12-35) is a 35 amp circuit breaker.
Hardware included.
Features
- Tripfree design
- Singlephase
- Ambient compensated
- MIL-DTL-27715 qualified
- Current rating: 35 amps
- Long, troublefree operation: 20,000 operating cycles
- High vibration resistance
- High interrupting capacity
- Option available: Auxiliary circuits
- Circuit protection unaffected by temperature fluctuations (ambient compensated from -53.9C to 93.3C)
- Only faulted line circuits opened (coordination ratings insure that branch circuit breakers trip first under fault conditions)
Specifications
Weight:
0.2 lbs
Current Rating:
35 A
Vibrations:
10G minimum, 5–2,000 Hz (other vibration levels available)
Mechanical Shock:
25G
Acceleration:
10G
Interrupt Current:
2½–65 A: 6,000 A at 30 VDC
2½–50 A: 6,000 A at 120 VAC, 400 Hz
65 A: 3000 A at 120VAC, 400 Hz
Endurance:
5,000 cycles: 120 VAC, 400 Hz inductive
5,000 cycles: 120 VAC, 400 Hz resistive
10,000 cycles: Mechanical, no load
20,000 cycles: Total
Product Codes
Mfr Part No :
6752-12-35
