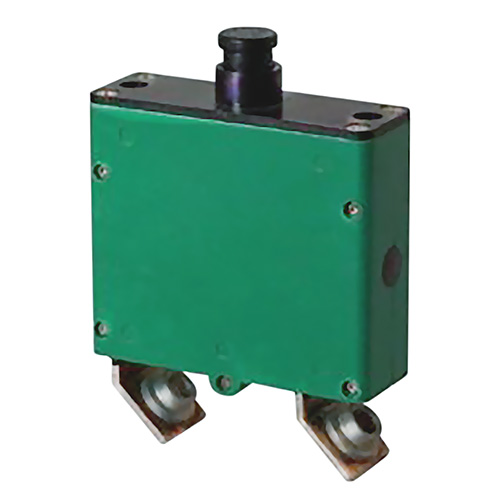

6752-100 Series Thermo-Magnetic Circuit Breaker | Single-Phase, 3-Phase

Product Description

The Klixon 6752-100 series thermo-magnetic circuit breakers are design to meet the stringent military standards and use the reliable design of the 6752 series. Similar to the 6752-12, the 6752-100 series circuit breakers include current ratings from 50 — 100 amps.

Exceeding previous military standards, the 6752-100 series features a higher interrupt capacity, vibration resistance, and a long cycling life; in addition to providing ambient compensation and fault coordination for all ratings, an option for auxiliary circuits.

Includes Hardware

Specifications

• Weight:
  0.25 lb (113.6 g), max.
• Interrupt Capacity:
  120 VAC, 400 Hz (3,500 amp) 28 VDC (6,000 amp)
• Endurance:
  5,000 cycles, no load 120 VAC, 400 Hz: 5,000 cycles (resistive & inductive) 28 VDC: 5,000 cycles (resistive) and 2,500 cycles (inductive)
• Overload Cycling:
  100 cycles @ 200% (rated load)
• Voltage Drop:
  50 — 100 amps
• Operating Forces:
  12 lb, max. (pullout) 16 lb, max. (reset)
• Dielectric Strength:
  1,500 VAC RMS
• Insulation Resistance:
  100 MΩ @ 500 VDC
• Operating Altitude:
  70,000 ft, max.
• Vibration:
  10G, 50 Hz — 50 Hz
• Shock:
  30G, 11 msec duration
• Acceleration:
  10G
• Sand and Dust:
  12 hr
• Corrosion:
  salt spray (50 hr)
• Moisture Resistance:
  240 hr
• Explosion Proof:
  while interrupting rupture currents

Product Codes

• Mfr Part No
  6752-102-100
• SCHEDULE B CODE
  8536.20.0020
