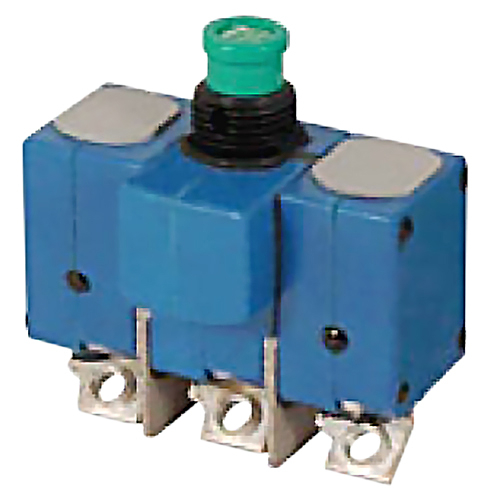

6TC14 Series Circuit Breaker | 10 Amp Rating

Select an option

KLIXON

Call For Pricing

Available to order

EDMO # 6TC14-10

MFR Part # 6TC14-10

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 6TC14 Series ambient compensated circuit breakers provide a three-phase design in a lightweight and miniature package. The three-phase design integrates each individual phase to provide over current protection in the event of simultaneous or unbalanced overloads including short circuit protection. The 6TC series are compatible with the single phase 2TC and 3TC counter parts. The 6TC circuit breakers are available in ratings from 1 amp to 35 amp with military and commercial approval on most styles.

Includes hardware.

Features

This 6TC14 circuit breaker (EDMO# 6TC14-10) is rated for 10 amps.
One phase trips all design
Protective shielding between each phase terminal
Pads for increased mounting security
Ambient temperature compensation
Trip-free design
High short circuit capacity

Specifications

Weight:

65 g, max.
Dimensions:

1.8 x 1.218 x 1.1 in, max.
Current Rating:

10 Amps
Vibration:

10G, minimum (50Hz – 500Hz)
Mechanical Shock:

50G
Acceleration:

10G
Interrupt Current:

2A – 20A: 2000A at 120 VAC, 400 Hz 15A – 35A: 2000A at 120 VAC, 400 Hz
Endurance:

2500 cycles: 120 VAC, 400 Hz (inductive) 5000 cycles: 120 VAC, 400 Hz (resistive) 5000 cycles: mechanical, no load
Qualifications:

MS14154
