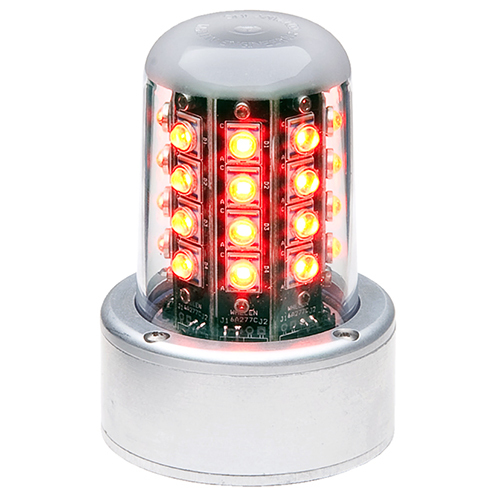

71080 Series LED Beacon | 5-Hole Adapter, RFI Shielded

Product Description

The 71080 Series LED beacons are self-contained LED anti-collision lights and TSO approved with 150 effective candlepower. These beacons are designed to replace existing beacons having a footprint that is 2-1/2 inches in diameter. Also, it can replace remotely mounted strobe lights, such as the A470 series, which allows for the power supply to be removed. An internal mounting plate provides a choice of mounting holes for most retrofit installation.

This 71080 Series LED beacon (EDMO# 7108008-18) has a 5-hole adapter, RFI shield, MS connector, and operates on 28V.

Specifications

• Power Consumption:
  0.28 Amps Avg. @ 28 VDC
• LED Colors:
  Aviation Red
• Lens:
  Aviation Clear, Polycarbonate
• Weight:
  0.6 lb (272 g)
• Dimensions:
  3.64 x 2.6 x 4.61 in (92 x 66 x 117 mm)
• Approvals:
  PMA: none STC: STC SA615EA FAA/TSO-C96a Class I

Product Codes

• Mfr Part No
  01-0771080-08/-18
