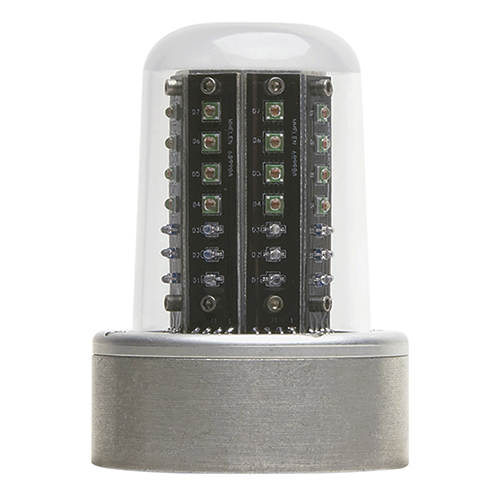

71485 Series Covert Infrared IR/Red Combination Beacon | 28 V, With Sync

Product Description

71485 is a combination Aviation Red visible and IR flashing beacon. Produced as a derivative of our Models 71080 & 90520, there is no TSO available for this product. 71485 can be surface mounted in an area as small as 2.75 or has an adapter to drop into a 3.75 recessed mount commonly found. Nominal IR LEDs at 875nm. unit ships with 18 flying leads, independent control for Red and IR LED packages. Surface mount unit and additional models are not listed, contact factory.

This 71485 Series anti-collision beacon (EDMO# 71485-50) is a 28 V unit and has sync capabilities.

Specifications

• Weight:
  0.670 lbs (304 g)
• Exposed Height:
  3.5 in (88.9 mm)
• Base Width:
  3.66 in (92.96 mm)
• Voltage:
  28 VDC
• Power Consumption:
  0.3 Amps Avg Red / 0.12Amps Avg IR
• LED Color:
  Aviation Red & IR
• Lens:
  Clear Polycarbonate

Product Codes

• Mfr Part No
  01-0771485-50
