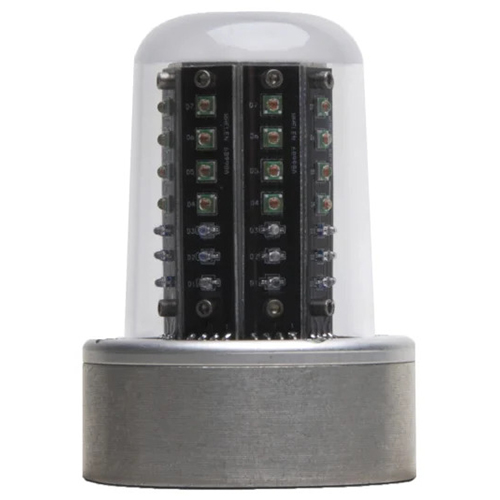

71485 Series | Covert IR/Red LED Combination Beacon | 28 VDC
WHELEN ENGINEERING
EDMO#: 7148502
MFR#: 01-0771485-02
Description
The 71485 series is a combination Aviation Red visible and IR (Infra-Red) flashing beacon. Produced as a derivative of our Models 71080 & 90520, there is no TSO available for this product. 71485 can be surface mounted in an area as small as 2.6 in or has an adapter to drop into a 3.75 in recessed mount commonly found. Nominal IR LEDs at 875 nm. Unit ships with 18” flying leads and independent control for Red and IR LED packages. Surface mount unit & additional models are not listed, contact factory. Complies with FAA TSO C96a Class III.
Features
No product features currently available.
Specifications
Weight:
0.670 lbs (304 g)
Exposed Height:
3.5 in (88.9 mm)
Base Width:
3.66 in (92.96 mm)
Voltage:
28 VDC
Power Consumption:
0.3 A Avg Red // 0.12 A Avg IR
LED Color:
Aviation Red & IR
Lens:
Clear Polycarbonate
Mounting Position:
Vertical
Product Codes
Mfr Part No :
01-0771485-02
ECCN :
EAR99
SCHEDULE B CODE :
8541.41.0000
