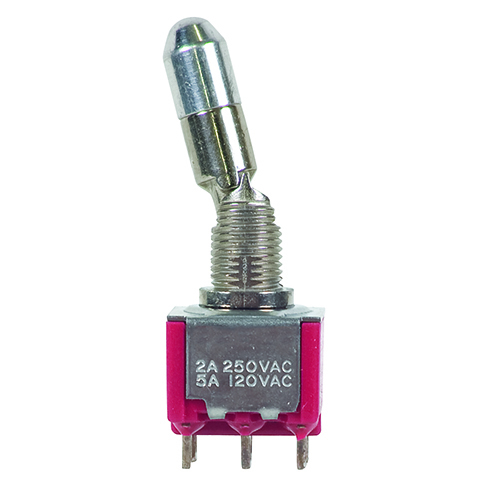

7000 Series Miniature Toggle Switch | Locking, DPDT, ON-ON

7000 Series Miniature Toggle Switch | Locking, DPDT, ON-ON

C & K COMPONENTS

Call For Pricing
A tariff fee of $1.6395 EA may apply.
Available to order
EDMO # 7201K2ZQE
MFR Part # 7201K2ZQE
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 7000 series miniature toggle switch has silver contact solder lug terminations. The threaded bushing is designed for panel mount installations with 1/4"" opening.

Version 7103K2ZQE is a double-pole, double-throw miniature toggle switch. Positions: ON-ON with 2-position lever lock

Features

  • Locking lever safety mechanism (must be pulled outward for toggle operation)
  • Threaded panel mount
  • 10mΩ at 2 to 4VDC Initial contact resistance
  • 10⁹Ω Minimum insulation resistance
  • 1000VRMS at sea level Minimum dielectric strength
  • Epoxy terminal-seal compatible with bottom wash cleaning
  • RoHS Compliant
  • Life: 100,000 make-and-break cycles at full load

Also Purchased

Specifications

  • Bushing: 1/4-40 UNS-2A
  • Temperature Range: -22ºF to 185ºF (–30ºC to 85ºC)
  • Contact current max: 5A
  • Contact Voltage AC: 115V nominal
  • Contact Voltage DC: 28V
  • Contact configuration: Double-pole, double-throw (DPDT)
  • Switch operation: ON-ON

Related Products

Product Codes

  • Mfr Part No
    7201K2ZQE
  • ECCN
    7A994
  • SCHEDULE B CODE
    8536.50.9040
