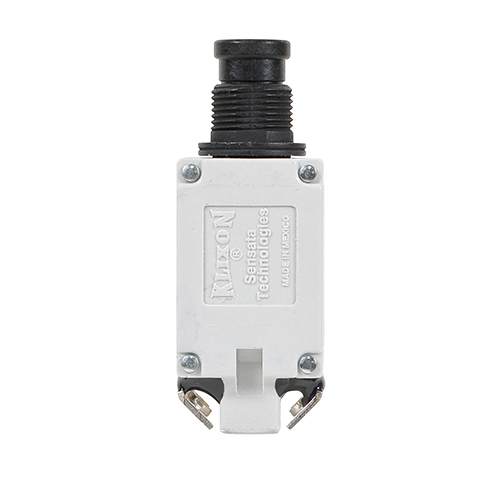

7274-67 Series Circuit Breaker | 20 Amp Rating

KLIXON

Call For Pricing

Available to order

EDMO # 7274-67-20

MFR Part # 7274-67-20

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Klixon® 7274-67 series circuit breakers are small, lightweight, and low amperage devices specifically designed to protect aircraft and aerospace cables, and components. The 7274 features a trip–free, indicating reset button and is available in standard ratings from 1/2 to 20 amps.

Includes hardware.

Features

This 7274-67 series circuit breaker (EDMO# 7274-67-20) is rated for 20 amps.
Single-Phase, Non-Compensated
Uses minimum space
Light weight
Trip-free design
MIL-C-5809 qualified
Low amp rating
High vibration resistance
Designed to protect military airborne vehicles and equipment

Specifications

Weight:

28g, maximum
Current Rating:

20 amps
Vibrations:

10G, minimum, 50 to 500 Hz
Mechanical Shock:

30G @ 11s
Acceleration:

10G
Interrupt Current:

0.50A – 5A: unlimited @ 28 VDC 7.50A – 15A: 2,000A @ 28 VDC 0.50A – 1.50A: unlimited @ 120 VAC, 400 Hz 2A – 5A: 800A @ 120 VAC, 400 Hz 7.50A – 20A: 500A @ 120 VAC, 400 Hz (28 VDC, 500A)
Endurance:

2,500 cycles: 120 VAC, 400 Hz inductive 5,000 cycles: 120 VAC, 400 Hz resistive 2,500 cycles: 30 VDC inductive 5,000 cycles: 30 VDC resistive 10,000 cycles: Mechanical, no load
Voltage Drop (at nominal rated current):

0.25V
