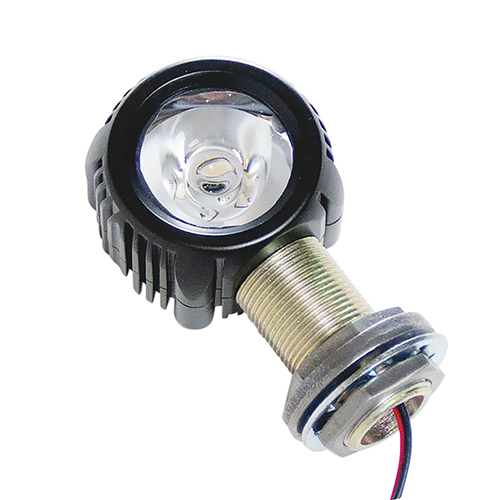

LED Ice Light | Threaded Mount

LED Ice Light | Threaded Mount

PWI

Call For Pricing
Available to order
EDMO # 7310045-00
MFR Part # 7310045-000
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The PWI LED Ice Light features many improvements over incandescent bulbs A7079B24, MS25338-7079, and WA7079B24. Compared to other replacement LED ice lights, the PWI LED Ice Light provides 210 more lumens which aids in the visibility of ice formation.

The PWI LED Ice Light also provides up to 100,000 hours of life compared to only 165 hours of life available with incandescent bulbs. Other enhancements include a significant reduction in power draw, as well as eliminating the radiant heat that comes with factory-installed bulbs. Less heat means less lens discoloration, cracking, and warping over the life of the light.

This LED Ice Light (EDMO# 7310045-00) has a threaded mount.

Features

  • 100,000 hour life span
  • Better visibility during taxing and takeoff
  • Very low power requirements
  • Significant reduction in heat eliminating lens degradation
  • Direct drop-in replacement for incandescent bulb
  • Beam angle FWHM 8
  • Threaded mount
  • Vibration resistant
  • Replaces Part A7079B24, MS25338-7079, and WA7079B24
  • Aircraft Compatibility:
  • Cessna: Conquest II 441, Caravan 208/208B, Citation 525 Series, Citation 550 Bravo, Citation 560, Citation 560XL, Citation 650 Series, Citation 680, Citation 750
  • Beechcraft: Baron 55, Baron 58, Hawker/Beechjet 400/400A, King Air 90, King Air 100, King Air 200, King Air B200, King Air 300, King Air B300, Airliner/Commuter 99 series

Specifications

  • Weight:
    56g
  • Dimensions:
    2.37 x 1.6 in
  • Lamp Base:
    BA155
  • Lumens:
    730
  • Current Draw:
    5.6 W
  • Operating Temperature:
    54°F
  • Operation Life:
    100,000 hr
  • Current Draw:
    200 mA @ 28 VDC

Product Codes

  • Mfr Part No
    7310045-000
  • SCHEDULE B CODE
    8539.10.0030
