Airman 7+ Deluxe Ultra-Lightweight Headset | 2PJ Connector

Product Description

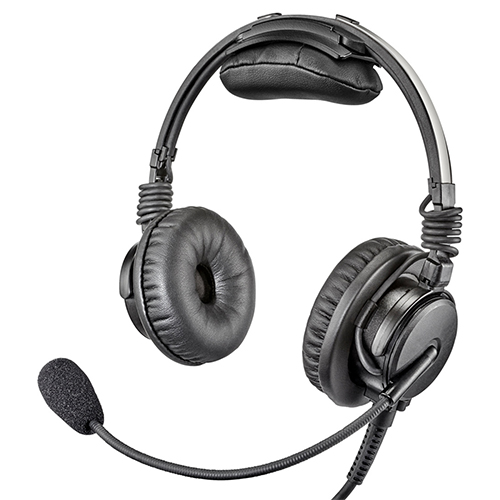

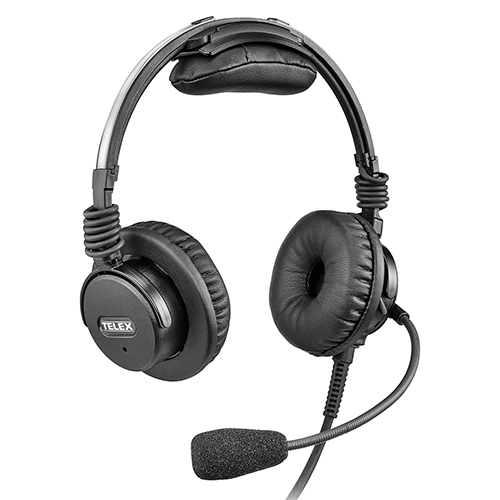

The Airman 7+ ultra-lightweight passive noise reduction headset from Telex is a non-ANR version of the Airman 8+, designed for commercial and business pilots. It offers enhanced passive noise reduction, reducing fatigue-inducing background noise while keeping engines and conversations audible for a less isolated cockpit experience. The Airman 7+ features large ear cushions, a durable stainless steel headband, and a flexible boom-mounted microphone for clear communication. With FAA and EASA compliance, it ensures exceptional comfort, sound quality, and reliability. Available with 2PJ or XLR5 plugs.

This Airman 7+ headset (EDMO# 7P-0210) has 2PJ connectors.

Specifications

• Weight:
  4.4 oz (125 g)
• Cable Length:
  6 ft ± 4 in (1.80 m ± 10 cm)
• Headset Type:
  Dynamic
• Nominal Impedance:
  600 Ω ± 20% @ 1 kHz
• Frequency Response:
  315 Hz – 3,150 Hz <15 dB max. to min. over the range
• Speaker Sensitivity:
  92 dB SPL ± 5 dB
• Microphone Element Type:
  Electret condenser; Noise cancelling
• Sensitivity:
  -28 dBV/PA ± 3 dB, 8V @ 1 kHz
• Operating Voltage:
  8 VDC – 16 VDC (470 Ω TSO load circuit)
• Headset Connector Type:
  Dual PJ connector
• Microphone Connector Type:
  PJ-068 (equivalent)

Product Codes

• Mfr Part No
  AIRMAN7P-0210
• SCHEDULE B CODE
  8518.30.2000
