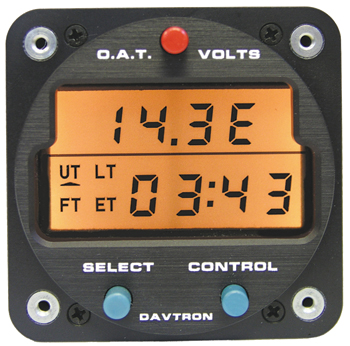

M803 Digital Clock Chronometer, O.A.T., Voltage Gauge | 5V Orange Lighting

DAVTRON

Call For Pricing

In stock

EDMO # 803-5V

MFR Part # M803-5V

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The M803 provides universal, local, flight and elapsed time with display annunciators. It also provides Outside Air Temperature (O.A.T.) and voltage readout. Flight time is recorded in hours and minutes, and includes an alarm with an external output for flight and elapsed time. Two buttons control clock features with another switching O.A.T. and voltage.

The 803-5V has 5V orange lighting and remote temperature probe.

Features

2-1/4 inch internal mount
3-button faceplate
Flight time with alarm
Universal time 24 hour format
Local time 12 or 24 hour format
Elapsed time with countdown timer and alarm
Voltage monitor
Outside air temperature Celsius & Fahrenheit
Liquid crystal display
Orange backlighting
Night illumination
Keep alive battery option
Laser engraved faceplate
FAA-PMA approval

Also Purchased

Specifications

Weight: 5.02 oz
Dimensions: 2.375 x 2.8 x 2.375 in
Universal Time: 24 hour format
Local Time: 12 hour or 24 hour option, user selectable
Elapsed Time Count Up: Starts in minutes and seconds, then hours and minutes, up to 99:59 hours
Elapsed Time Countdown: Settable from one second to 59 minutes and 59 seconds
Elapsed Time Alarm: Activates at zero when counting down
Voltage Range: 8 Volts to 32 Volts ±0.2 Volts Typ. -55°C to +100°C ±0.2°C Typ.
Internal Lighting: 240 mA at 5V
Display: Liquid crystal display
Keep alive current: 0.004 Amps. 12 to 30 Volts
Voltage: 12 to 30 volts
