M81714/65 Series II Inline Junction Splice | Single Splice, Size 20

Product Description

The M81714/65 Series II In-Line Junction Splices are available in single and double configurations in sizes 16, 20, and 22 AWG. These splices use an advanced polyetherimide body, one-piece bus assembly and construction. They connect two wires in-line using M39019/22 socket and pin contacts. The junctions can then be placed in a wire bundle without being mounted.

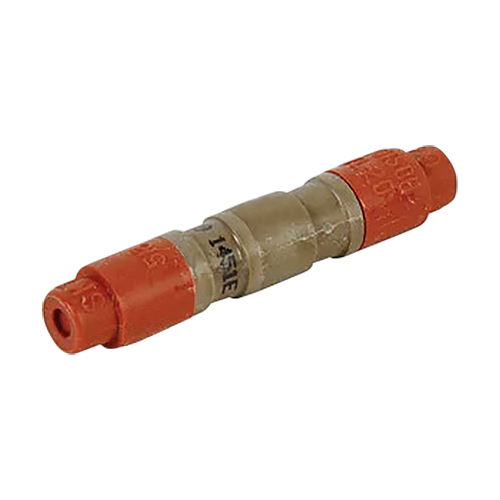

This M81714/65 Series II Inline Junction Splice (EDMO# 8171465201) accepts size 20 contacts and is a single splice.

Specifications

• Operating Temperature:
  -55ºC to 200ºC
• Insulation Resistance:
  5000 MΩ (min)
• Dielectric Withstanding Voltage:
  1500 VRMS at Sea Level 200 VRMS at 100,000 ft.
• Current Rating:
  7.5 A
• Vibration & Shock:
  Per MIL-T-81714 Paragraph 3.5.5 & 3.5.8
• Insulator Body:
  Polyerthermide per ASTM-D-5205
• Grommet:
  Silicone Rubber per A-A-59588
• Internal Contact:
  Copper Alloy, Gold Finish Accordance with MIL-G-45204

Product Codes

• Mfr Part No
  M81714/65-20-1
• SCHEDULE B CODE
  8536.90.4000
