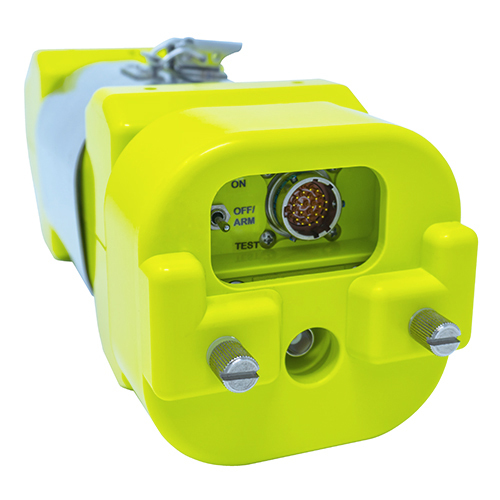

ELT 4000 HM Base Pack
ACR ELECTRONICS / ARTEX
EDMO#: 8272
MFR#: 8272
No Stock
Description
The ARTEX ELT 4000 HM is a transport-grade Emergency Locator Transmitter (ELT) that uses alkaline batteries as an innovative power source to make this commercial grade ELT completely exempt from FAA special condition requirements. This lowers the cost of ownership with lower battery expense per cycle, no hazmat shipping, and easy disposal.
The ELT 4000 can either be activated manually, with the remote switch, or automatically when the G-switch detects a 2.3G or greater impact; it then alerts the nearest Search and Rescue agency of the emergency. The 406 MHz signal transmits GPS coordinates to Cospas-Sarsat satellites, and a 121.5 MHz homing signal assists Search and Rescue with finding the location of the crash.
This Transport Grade ELT provides quick-and-easy retrofit opportunities with flexible installation options such as a two-wire remote switch that does not require aircraft power. The ELT 4000 is TSO approved for retrofit installations with legacy switch and antenna systems, and uses the same RF output and one coax cable to transmit both 406 and 121.5 MHz. Further reducing costs, this Alkaline ELT includes a built-in ARINC429 navigation interface, and the mounting tray is compatible with Artex C and B series emergency locator transmitters.
This Artex ELT 4000 HM base pack (EDMO# 8272) includes the ELT unit, 5 year alkaline battery, installation hardware, buzzer, and connectors.
*9600 standard baud rate unless otherwise requested.
Features
- Automatic Fixed Emergency Locator Transmitter
- Dual Frequency distress beacon — digital 406 MHz and analog 121.5 MHz homing signal
- Auto activation using internal G-switch
- Dual-band antenna, single connector and cable to transmitter
- Compatible with legacy antennas
- Easy maintenance and installation
- Several cockpit remote switch options available
- Connects to onboard GPS using the Integrated ARINC429 interface
- GPS data is embedded in digital transmission reducing search radius down to 100 meters
- Replaceable 5-year battery life (ships non-hazmat)
- ARTEX ELT 4000 HM Helicopter version with 5-axis G-Switch available
- Compatible with ARTEX 406Test.com Satellite Confirmation Testing System
- FAA, CAAC, ANATEL, Industry Canada and EASA certifications pending
- Cospas-Sarsat Type Approved
Specifications
Weight:
5.45 lb (2.47 kg), with battery pack and mounting tray
Dimensions:
11.63 x 3.42 x 4.15 in (295 x 87 x 105 mm)
Operating Frequency:
406.031 MHz ±1kHz
121.5 MHz ±0.005%
Emission Designators:
16K0G1D (406.031 MHz)
3K20A3X (121.5 MHz)
Peak Effective Radiated Power (EIRP):
406 MHz: 5W (37 dBm) for 24 hours @ -20°C to 55°C (-4°F to 131°F)
121.5 MHz: 100 mW (min 20 dBm) for 50 hours @ -20°C to 55°C (-4°F to 131°F)
Automatic Activation:
Via Primary G-Switch by 4.5 ±0.5 ft/sec (2.3 G)
Manual Activation:
Via unit or remote switch
Self-Test:
G-Switch enabled, 406 MHz power, antenna/coax connection, and low battery
Operating Temperature:
-20°C to 55°C (-4°F to 131°F)
Storage Temperature:
-55°C to 85°C (-67°F to 185°F)
Battery:
5-year Alkaline
Remote Switch Functions:
On/Arm/Test
Output Connector:
406/121.5 MHz (BNC Female)
Mounting Tray:
Mounting tray bottom (452-5050-1)
Mounting tray top (452-3052-1)
Mounting tray cap (452-5066-1)
Mounting Strap:
Retention strap (A3-06-3043)
Certifications:
FAA, EASA Via Bilateral Approved, CAAC, ANATEL, Industry Canada Pending
Warranty:
30 months from date of installation
Product Codes
Mfr Part No :
8272
