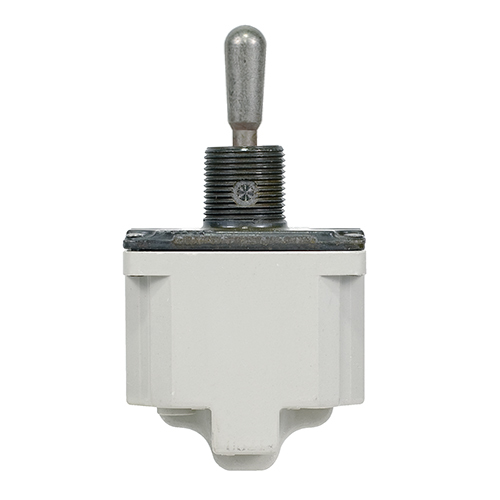

8501 Series Toggle Switch | DPDT, ON(MOM)-ON-ON(MOM), Environmentally Sealed

8501 Series Toggle Switch | DPDT, ON(MOM)-ON-ON(MOM), Environmentally Sealed

EATON

Call For Pricing
Available to order
EDMO # 8501K16
MFR Part # 8501K16
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 8501K series are environmentally sealed toggle switches that are completely protected from dust, moisture, and other contaminates.

Version 8501K16 is a double-pole, double-throw toggle switch. Positions: ON(momentary)-ON-ON(momentary)

Features

  • Threaded panel mount
  • Thermoset molding materials meet flame retardant requirements
  • Molded-in terminal inserts and terminal numbers
  • Environmentally sealed per MIL-S-3950
  • MS approved and QPL'd per MIL-S-3950
  • Life: 20,000 operations at rated load 40,000 operations mechanical life

Specifications

  • Bushing:
    15/32"" - 32 thread
  • Temperature Range:
    -85F to +160F (-65C to +71C)
  • Contact current max:
    20A
  • Contact Voltage AC:
    115V nominal
  • Contact Voltage DC:
    28V
  • Contact configuration:
    Double-pole, double-throw (DPDT)
  • Switch operation:
    ON(MOM)-ON-ON(MOM)
  • Specification
    MS part number: MS27407-3

Related Products

Product Codes

  • Mfr Part No
    8501K16
  • MIL SPEC
    MS27407-3
  • ECCN
    EAR99
  • MIL SPEC
    MS27407-3
  • SCHEDULE B CODE
    8536.50.9065
