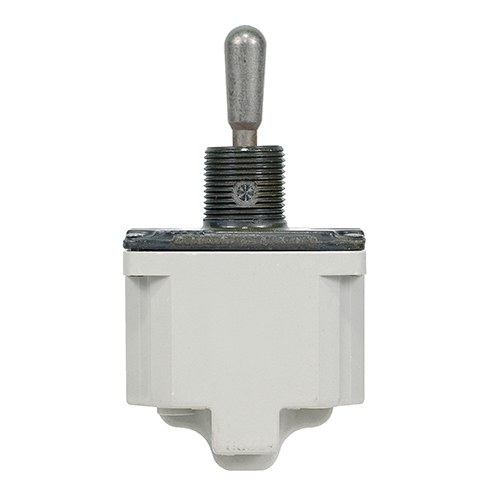

8501 Series Toggle Switch | DPDT, ON-OFF-ON(MOM), Environmentally Sealed

8501 Series Toggle Switch | DPDT, ON-OFF-ON(MOM), Environmentally Sealed

EATON

Call For Pricing

Available to order

EDMO # 8501K3

MFR Part # 8501K3

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 8501K series are environmentally sealed toggle switches that are completely protected from dust, moisture, and other contaminates.

Version 8501K3 is a double-pole, double-throw toggle switch. Positions: ON-OFF-ON(momentary)

Features

Threaded panel mount
Thermoset molding materials meet flame retardant requirements
Molded-in terminal inserts and terminal numbers
Environmentally sealed per MIL-S-3950
MS approved and QPL'd per MIL-S-3950
Life: 20,000 operations at rated load 40,000 operations mechanical life

Also Purchased

Specifications

Bushing:

15/32"" - 32 thread
Temperature Range:

-85F to +160F (-65C to +71C)
Contact current max:

20A
Contact Voltage AC:

115V nominal
Contact Voltage DC:

28V
Contact configuration:

Double-pole, double-throw (DPDT)
Switch operation:

ON-OFF-ON(MOM)
Specification

MS part number: MS24524-31

Product Codes

Mfr Part No

8501K3
MIL SPEC

MS24524-31
ECCN

EAR99
MIL SPEC

MS24524-31
SCHEDULE B CODE

8536.50.9065
