8503 Series Lever Lock Toggle Switch | SPDT, ON-ON, P, Environmentally Sealed

8503 Series Lever Lock Toggle Switch | SPDT, ON-ON, P, Environmentally Sealed

EATON

Call For Pricing
Available to order
EDMO # 8503K34
MFR Part # 8503K34
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

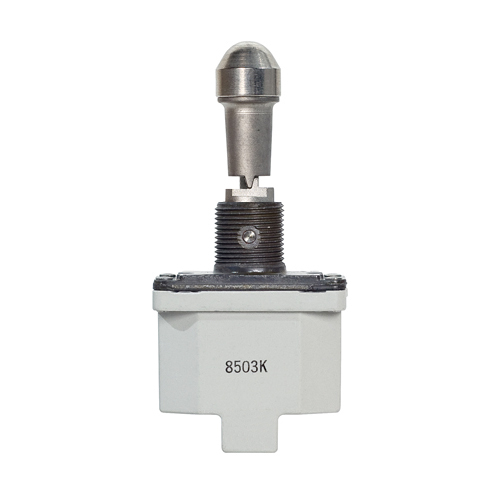

The 8503K series are environmentally sealed toggle switches that are completely protected from dust, moisture, and other contaminates. The lever lock mechanism prevents accidental switch operation.

Version (EDMO# 8503K34) is a single-pole, double-throw toggle switch. Positions: ON-ON with P style bushing (locked out of and into keyway side)

Features

  • Locking lever safety mechanism (must be pulled outward for toggle operation)
  • Threaded panel mount
  • Thermoset molding materials meet flame retardant requirements
  • Molded-in terminal inserts and terminal numbers
  • Environmentally sealed per MIL-S-3950
  • MS approved and QPL'd per MIL-S-3950
  • Life: 20,000 operations at rated load 40,000 operations mechanical life

Specifications

  • Bushing:
    15/32"–32 thread
  • Temperature Range:
    -85ºF to 160ºF (-65ºC to 71ºC)
  • Contact Current Max:
    20 A
  • Contact Voltage AC:
    115 V nominal
  • Contact Voltage DC:
    28 V
  • Contact Configuration:
    Single-pole, Double-throw (SPDT)
  • Switch Operation:
    ON-ON
  • MS Part Number:
    MS24658-21P

Related Products

Product Codes

  • Mfr Part No
    8503K34
  • MIL SPEC
    MS24658-21P
  • ECCN
    EAR99
  • MIL SPEC
    MS24658-21P
  • SCHEDULE B CODE
    8536.50.9065
