8504 Series Lever Lock Toggle Switch | DPST, ON-OFF, G, Environmentally Sealed

8504 Series Lever Lock Toggle Switch | DPST, ON-OFF, G, Environmentally Sealed

EATON

Call For Pricing
Available to order
EDMO # 8504K9
MFR Part # 8504K9
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

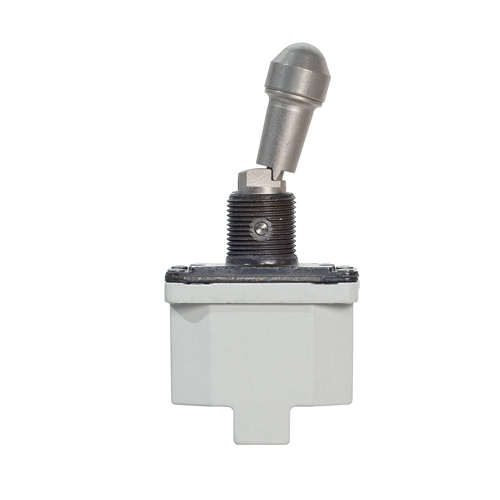

The 8504K series are environmentally sealed toggle switches that are completely protected from dust, moisture, and other contaminates. The lever lock mechanism prevents accidental switch operation.

Version 8504K9 is a double-pole, single-throw toggle switch. Positions: ON-OFF with G style bushing (locked in keyway side)

Features

  • Locking lever safety mechanism (must be pulled outward for toggle operation)
  • Threaded panel mount
  • Thermoset molding materials meet flame retardant requirements
  • Molded-in terminal inserts and terminal numbers
  • Environmentally sealed per MIL-S-3950
  • MS approved and QPL'd per MIL-S-3950
  • Life: 20,000 operations at rated load 40,000 operations mechanical life

Specifications

  • Bushing:
    15/32"" - 32 thread
  • Temperature Range:
    -85F to +160F (-65C to +71C)
  • Contact current max:
    20A
  • Contact Voltage AC:
    115V nominal
  • Contact Voltage DC:
    28V
  • Contact configuration:
    Double-pole, single-throw (DPST)
  • Switch operation:
    ON-OFF
  • Specification
    MS part number: MS24659-22G

Related Products

Product Codes

  • Mfr Part No
    8504K9
  • MIL SPEC
    MS24659-22G
  • ECCN
    EAR99
  • MIL SPEC
    MS24659-22G
  • SCHEDULE B CODE
    8536.50.9065
