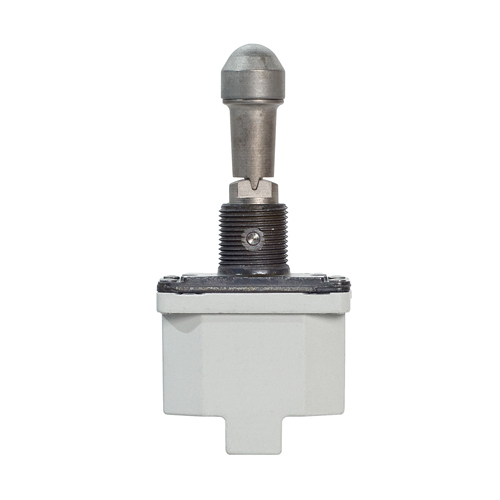

8505 Series Lever Lock Toggle Switch | 4PDT, ON-ON, E, Environmentally Sealed

8505 Series Lever Lock Toggle Switch | 4PDT, ON-ON, E, Environmentally Sealed

EATON

Call For Pricing
Out of stock
EDMO # 8505K2
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 8505K series are environmentally sealed toggle switches that are completely protected from dust, moisture, and other contaminates. The lever lock mechanism prevents accidental switch operation.

Version 8505K2 is a four-pole, double-throw toggle switch. Positions: ON-ON with E style bushing (locked in center position)

Features

  • Locking lever safety mechanism (must be pulled outward for toggle operation)
  • Threaded panel mount
  • Thermoset molding materials meet flame retardant requirements
  • Molded-in terminal inserts and terminal numbers
  • Environmentally sealed per MIL-S-3950
  • MS approved and QPL'd per MIL-S-3950
  • Life: 20,000 operations at rated load 40,000 operations mechanical life

Specifications

  • Bushing:
    15/32"" - 32 thread
  • Temperature Range:
    -85F to +160F (-65C to +71C)
  • Contact current max:
    20A
  • Contact Voltage AC:
    115V nominal
  • Contact Voltage DC:
    28V
  • Contact configuration:
    Four-pole, Double-throw (DPDT)
  • Switch operation:
    ON-ON
  • Specification
    MS part number: MS24660-21E
