DANIELS MFG

Call For Pricing
Available to order
EDMO # 86-103
MFR Part # 86-103
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

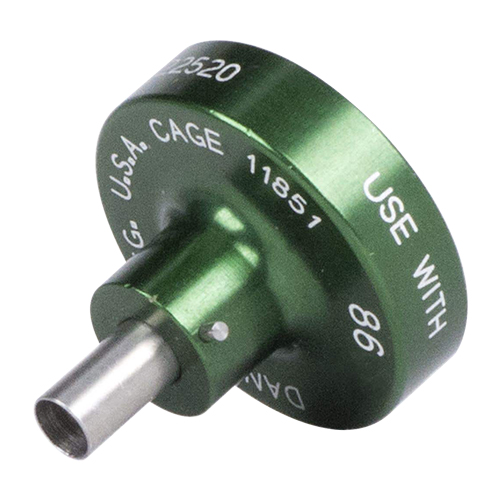

This positioner (EDMO# 86-103) is used with the MH860 crimp tools to locate contacts horizontally and vertically between the indenters of the tools.

Features

  • Contacts serviced:
  • M24308/12-1 & M24308/13-1 Size 22D Sockets and Pins
  • MS27491, MS27492, MS27493, MS27494 Size 22, 22M, and 22D Short Sockets and Pins
  • Compatible tools:
  • MH860 Adjustable Middle Range 8 Indent Crimp Tool

Specifications

  • Dimensions:
    0.93 x 0.87 in
  • Locator Hole Dimensions:
    0.063 in
  • Contact Sizes:
    22, 22M, 22D

Related Products

Product Codes

  • Mfr Part No
    86-103
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8203.20.6060
