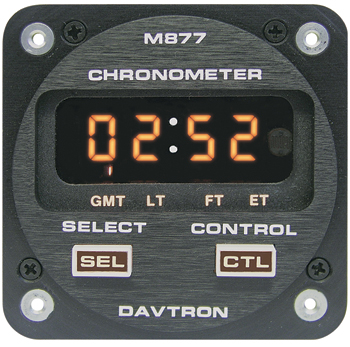

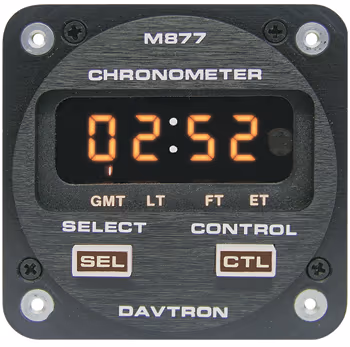

877 Series Digital Chronometer | 28V Lighting, Illuminated Buttons, Black Face Plate, Rear Mount

CHRONOMETER/LED Digital clock with 28V illuminating buttons. Displays Universal time, Local time, Flight time, and Elapsed time. 2 1/4 internal mount.  2-button control, Sunlight readable, Automatic dimming.

DAVTRON

Call For Pricing
In stock
EDMO # 877-28V
MFR Part # M877-28V
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Davtron’s 800-series clocks are multi-functional chronometers with an easy to use two-button design. They display universal time, local time, and elapsed time. The 800 series come with two different screen formats, either liquid crystal or incandescent — both with illuminated screens that are readable in high sunlight situations.


This 877 series chronometer (EDMO# 877-28V) features 28V lighting with illuminated buttons and rear mount installation.

Features

  • 2-1/4 inch internal mount
  • Two-button control system
  • Greenwich Mean Time
  • Local Time
  • Flight time with alarm
  • Elapsed time counter with countdown timer
  • Elapsed time alarm
  • Option audio alarm
  • Bright, incandescent, sunlight readable display
  • Automatic dimming
  • Illuminated buttons and annunciators
  • Keep alive battery option
  • FAA-PMA approved

Specifications

  • Weight:
    5 oz
  • Dimensions:
    1.875 x 2.375 x 2.81 in
  • Battery Type:
    N size alkaline Model 850 AA size alkaline Model 850
  • Keep Alive Current:
    0.00004 Amps
  • Input Current:
    0.2 Amps
  • Input Voltage:
    14V – 28V (backlight available 5V, 14V, or 28V)
  • NVIS Option:
    NVIS Green A lighting
  • Face plate:
    black with engraved nomenclature gray with silk-screened nomenclature

Product Codes

  • MD HELI
    M877-28V
  • Mfr Part No
    M877-28V
  • ECCN
    7A994
  • NSN
    6645-01-296-2301
  • PMA
    PQ1062NM
  • SCHEDULE B CODE
    9104.00.0000
  • SIN
    334511
