Product Description

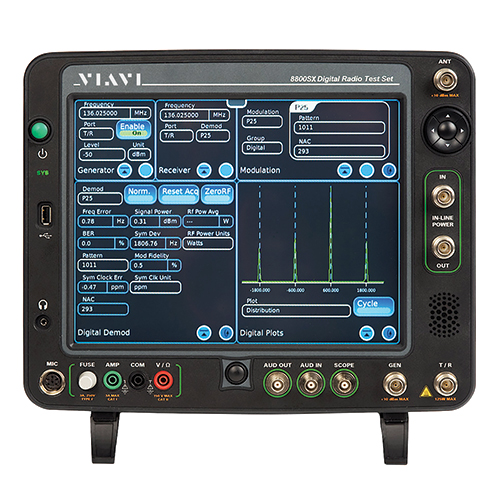

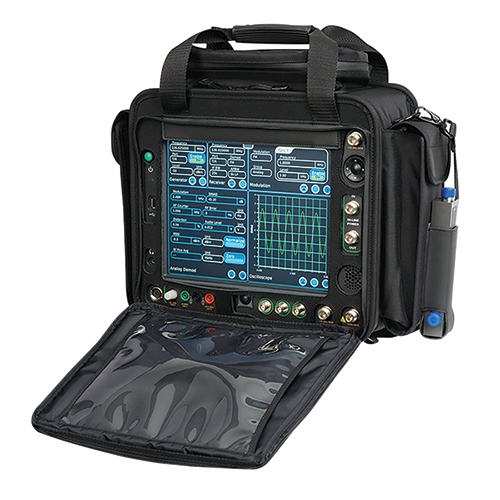

The 8800SX Digital Radio Test Set expands upon the features of the 8800 series with a 10 MHz external reference and enhanced software which boosts speed and testing of land mobile radio systems. It accommodates the testing of new and legacy land mobile radios by providing a wide range of digital and analog test features in a hybrid, portable design equipped with the industry's largest color touch-screen display. This test set provides higher direct power measurements up to 125 watts and a measurement range from -140 dBm to 500 watts. The 8800SX is a one-box solution that provides advanced features including auto-test, digital modulation analysis plots, and an internal 500 watt (4% accuracy) in-line power meter.

Features

10 MHz external reference
Automated test and alignment
Wideband analyzer and fast channel analyzer with six color markers
Fast stack: test functions can be stacked on one another and instantly accessed on the large touch screen
Presets: ultra fast store and recall of test setups
Frequency lists: user-defined frequency lists with editable Tx frequency, Tx level, and RX frequency entries
Audio Record/Playback: digital audio quality performance tests
Color meters: color indicates pass/fail results on each meter
Digital modulation plots: distribution, constellation, and eye diagram
TDMA burst profile plot: for DMR only; includes a burst ""mask"" for visual pass/fail
DMM: simple measurement of voltage, current, Ohms; required for automated test and alignment on mobile radios

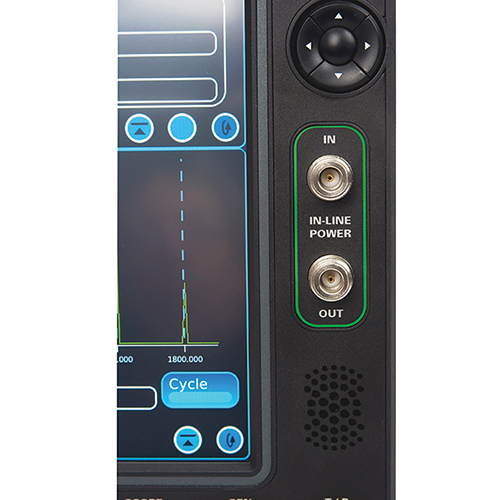

In-line power meter: internal or external; 500 W input with 4% accuracy
Tracking generator: VSWR, return loss, DTF, and tuning duplexers
Tests AM/FM, P25, P25 Phase II, DMR (MOTOTRBO), NXDN, dPMR, ARIB T98, PTC
Multi-language GUI: English, simplified Chinese, traditional Chinese, Spanish, Portuguese, Malay/Indonesian, Korean, Arabic, Polish, Russian, Japanese, German, and French

Also Purchased

Specifications

Dimensions:

13.5 x 11.54 x 5.75 in (34.3 x 29.3 x 14.6 cm)
Display Size:

12 in (30.5 cm)
Weight:

17 lb (7.71 kg) base unit (with hardware options)
Internal Battery:

>2.5 hours
Rugged:

30G shock, MIL-STD 28800F Class 3
Measurement Range:

-140 dBm to 500 watts
Power Accuracy:

10% (6% typical)
DMM:

Volts, current, ohms
In-Line Power Meter:

500 W, 4% accuracy
Record and Playback:

Digital audio quality
Quick Presets:

Ultra-fast test setup
Frequency Lists:

Tx frequency, Tx level, Rx frequency
"Fast Stack" User Interface:

Instant access to multiple meters
Tracking Generator:

VSWR, return loss, distance-to-fault, tuning duplexers
I/O Connections:

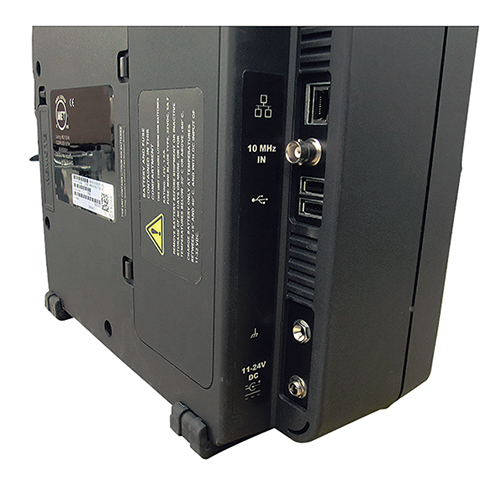

T/R: N-Type female ANT: N-Type female GEN: N-Type female Scope: BNC female AUD IN: BNC female AUD OUT: BNC female Headphone jack: 3.5 mm USB connector (qty 3): USB type A External 10 MHz reference input: BNC female Ethernet connector: RJ45 DC Power: 2-position, 2.5 mm jack GND connector: banana DMM (qty 3): banana (optional) IN (In-Line Power Meter): N-type female (optional) OUT (In-Line Power Meter): N-type female (optional)
DC Operation:

-20°C to 50°C
Relative Humidity:

5 to 95%; MIL-PRF-28800F, Class 3
Shock, Functional:

30 G shock, MIL-PRF-28800F, Class 3
Altitude:

4,600 m, MIL-PRF-28800F, Class 3, battery only 3,048 m, MIL-PFR-28800F, Class 3, AC Power operation
Vibration:

5 to 500 Hz, MIL-PRF-28800F Class 3
AC Input Power (AC to DC converter/Charger Unit):

100 - 240 VAC, 1.5 A max, 47 - 63 Hz
AC Input Fluctuation:

Less than 10% of the nominal input voltage
Transient Overvoltage:

According to Installation Category II
Operating Temperature:

0°C to 40°C
Storage Temperature:

-20°C to 85°C
EMI:

EN55022 Class B, EN61000-3-2, Class D
Safety:

UL 1950, CSA 22.2 No 234 and No 950, IEC 950/EN 60950
DC Input Power:
Voltage Range:

11 to 24 VDC
Maximum Power:

55W, 65W charing optional battery
Typical Power:

30 W
Fused:

5A, 32 VDC, Type F
