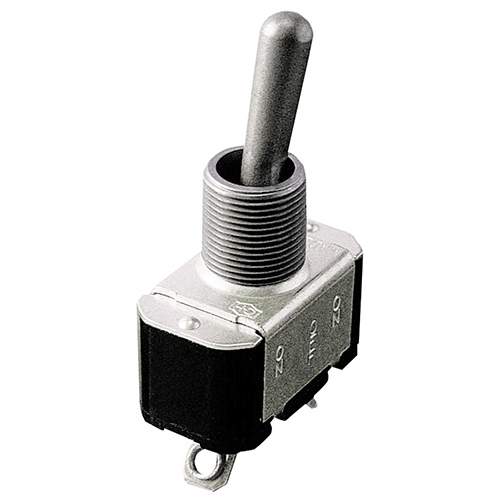

8800 Series Toggle Switch | SPDT, ON-OFF-ON(MOM), Lever Seal

8800 Series Toggle Switch | SPDT, ON-OFF-ON(MOM), Lever Seal

EATON

Call For Pricing
Available to order
EDMO # 8809K16
MFR Part # 8809K16
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 8800 series military purpose toggle switches have a silicone rubber seal around the lever to resist entry of contaminates such as dust, sand or water into the contact structure.

Version (EDMO# 8809K16) is a single-pole, double-throw toggle switch. Positions: ON-OFF-ON(momentary)

Features

  • Heavy-duty
  • Solder lug
  • Threaded panel mount
  • Thermoset molding materials meet flame retardant requirements
  • Molded-in terminal inserts and terminal numbers
  • MS approved and QPL'd per MIL-S-83731
  • Life: 20,000 operations at rated load 40,000 operations mechanical life

Specifications

  • Bushing:
    15/32"" - 32 thread
  • Temperature Range:
    0°F 10 +150°F (-17.8°C to +65.6°C)
  • Contact current max:
    20A
  • Contact Voltage AC:
    115V nominal
  • Contact Voltage DC:
    28V
  • Contact configuration:
    Single-pole, double-throw (SPDT)
  • Switch operation:
    ON-OFF-ON(MOM)
  • Specification
    MS part number: MS35058-31

Related Products

Product Codes

  • Mfr Part No
    8809K16
