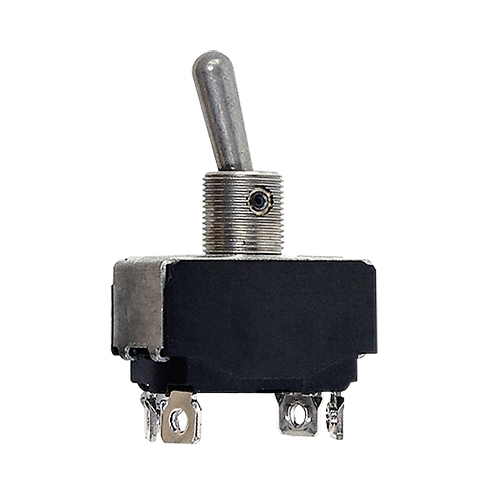

8800 Series Toggle Switch | DPST, ON-OFF, Lever Seal

8800 Series Toggle Switch | DPST, ON-OFF, Lever Seal

EATON

Call For Pricing
Available to order
EDMO # 8822K20
MFR Part # 8822K20
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 8800 series military purpose toggle switches have a silicone rubber seal around the lever to resist entry of contaminates such as dust, sand or water into the contact structure.

This 8800 series toggle switch (EDMO# 8822K20) is a double-pole, single-throw toggle switch. Positions: ON-OFF

Features

  • Heavy-duty
  • Solder lug
  • Threaded panel mount
  • Thermoset molding materials meet flame retardant requirements
  • Molded-in terminal inserts and terminal numbers
  • MS approved and QPL'd per MIL-S-83731
  • Life: 20,000 operations at rated load 40,000 operations mechanical life

Specifications

  • Bushing:
    15/32" - 32 thread
  • Temperature Range:
    0°F to +150°F (-17.8°C to +65.6°C)
  • Contact Current Max:
    20A
  • Contact Voltage AC:
    115V nominal
  • Contact Voltage DC:
    28V
  • Contact Configuration:
    Double-pole, single-throw (DPST)
  • Switch Operation:
    ON-OFF
  • MS Part Number:
    MS35059-22

Related Products

Product Codes

  • Mfr Part No
    8822K20
  • MIL SPEC
    MS35059-22
  • ECCN
    EAR99
  • MIL SPEC
    MS35059-22
  • SCHEDULE B CODE
    8536509065
