8800 Series Toggle Switch | DPDT, ON-OFF-ON(MOM), Lever Seal
-lever-seal-1600648751.jpg)
EATON
EDMO#: 8832K6
MFR#: 8832K6
Description

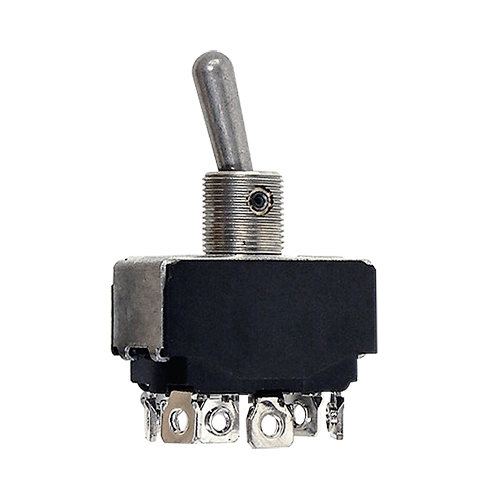

The 8800 series military purpose toggle switches have a silicone rubber seal around the lever to resist entry of contaminates such as dust, sand or water into the contact structure.
This 8800 series toggle switch (EDMO# 8832K6) is a double-pole, double-throw toggle switch. Positions: ON-OFF-ON(momentary)
Features
- Heavy-duty
- Solder lug
- Threaded panel mount
- Thermoset molding materials meet flame retardant requirements
- Molded-in terminal inserts and terminal numbers
- MS approved and QPL'd per MIL-S-83731
- Life: 20,000 operations at rated load 40,000 operations mechanical life
Specifications
Bushing:
15/32" - 32 thread
Temperature Range:
0°F to +150°F (-17.8°C to +65.6°C)
Contact current max:
20A
Contact Voltage AC:
115V nominal
Contact Voltage DC:
28V
Contact configuration:
Double-pole, double-throw (DPDT)
Switch operation:
ON-ON(MOM)
MS part number:
MS35059-31
Product Codes
Mfr Part No :
8832K6
MIL SPEC :
MS35059-31
ECCN :
EAR99
MIL SPEC :
MS35059-31
SCHEDULE B CODE :
8536.50.9065
