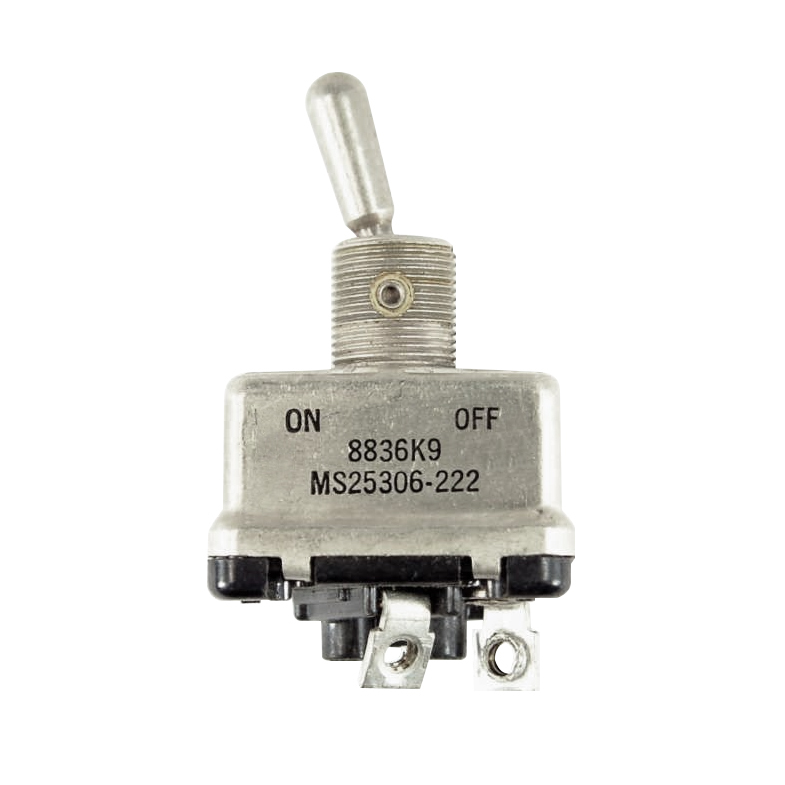

8800 Series Toggle Switch | SPST, ON-OFF, Environmentally Sealed, Positive Action

8800 Series Toggle Switch |SPST, ON-OFF, Environmentally Sealed, Positive Action

EATON

Call For Pricing
Available to order
EDMO # 8836K9
MFR Part # 8836K9
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 8800 series are military purpose environmentally sealed toggle switches that are completely protected from dust, moisture, and other contaminates.

Version (EDMO# 8836K9) is a single-pole, single-throw toggle switch. Positions: ON-OFF

Features

  • Heavy-duty
  • Solder lug
  • Non-teasible mechanism
  • Positive make and break action
  • Threaded panel mount
  • Thermoset molding materials meet flame retardant requirements
  • Molded-in terminal inserts and terminal numbers
  • Environmentally sealed per MIL-S-8834
  • MS approved and QPL'd per MIL-S-8834
  • Life: 20,000 operations at rated load 40,000 operations mechanical life

Specifications

  • Bushing:
    15/32" - 32 thread
  • Temperature Range:
    -67°F to +160°F (-55°C to +71°C)
  • Contact Current Max:
    20A
  • Contact Voltage AC:
    115V nominal
  • Contact Voltage DC:
    28V
  • Contact Configuration:
    Single-pole, single-throw (SPST)
  • Switch Operation:
    ON-OFF
  • MS Part Number:
    MS14001-212
