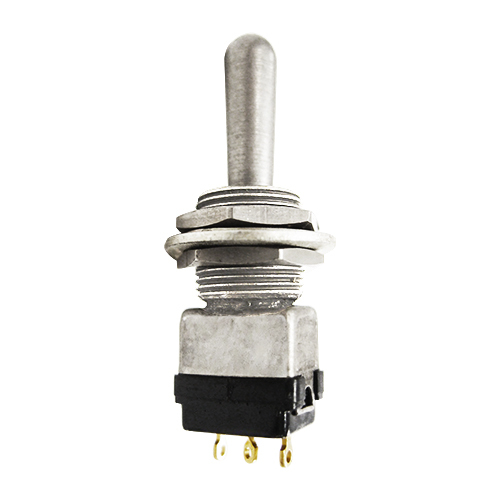

8868 Series Miniature Positive Action Toggle Switch | SPDT, ON-ON

8868 Series Miniature Positive Action Toggle Switch | SPDT, ON-ON

EATON

Call For Pricing
Available to order
EDMO # 8868K54
MFR Part # 8868K54
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 8868K series toggle switches have sealed bushings to protect from dust, moisture, and other contaminates. The miniature switches have a positive make and break action.

Version (EDMO# 8868K54) is a single-pole, double-throw toggle switch. Positions: ON-ON

Features

  • Threaded panel mount
  • Current rating versatility
  • Non-teasible mechanism for all but center ""ON"" circuits
  • Dry circuit (logic level loads) to power switching levels
  • Solder lug terminals
  • Wiping action contacts
  • Bushing seal or bonded seal per MIL-DTL-8834
  • MS approved and QPL'd per MIL-DTL-8834
  • Life: 20,000 operations at rated load 40,000 operations mechanical life

Specifications

  • Bushing:
    15/32" - 32 thread
  • Temperature Range:
    -67°F to +160°F (-55°C to +71°C)
  • Contact Current Max:
    5A
  • Contact Voltage AC:
    115V nominal
  • Contact Voltage DC:
    28V
  • Contact Configuration:
    Single-pole, double-throw (SPDT)
  • Switch Operation:
    ON-OFF-ON
  • MS Part Number:
    MS21346-231

Related Products

Product Codes

  • Mfr Part No
    8868K54
  • MIL SPEC
    MS21351-321
  • MIL SPEC
    MS21351-321
