8869 Series Miniature Positive Action Toggle Switch | DPDT, ON-ON

8869 Series Miniature Positive Action Toggle Switch | DPDT, ON-ON

EATON

Call For Pricing
Available to order
EDMO # 8869K4
MFR Part # 8869K4
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

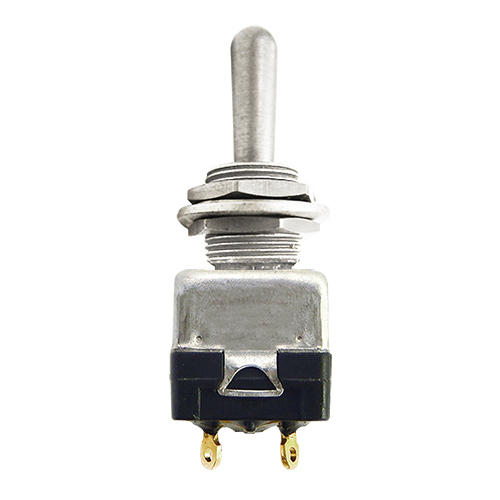

The 8869K series toggle switches have sealed bushings to protect from dust, moisture, and other contaminates. The miniature switches have a positive make and break action.

Version 8869K4 is a double-pole, double-throw toggle switch. Positions: ON-ON

Features

  • Threaded panel mount
  • Current rating versatility
  • Non-teasible mechanism for all but center ""ON"" circuits
  • Dry circuit (logic level loads) to power switching levels
  • Solder lug terminals
  • Wiping action contacts
  • Bushing seal or bonded seal per MIL-DTL-8834
  • MS approved and QPL'd per MIL-DTL-8834
  • Life: 20,000 operations at rated load 40,000 operations mechanical life

Specifications

  • Bushing: 15/32"" - 32 thread
  • Temperature Range:
  • -67°F to +160°F (-55°C to +71°C)
  • Contact current max: 5A
  • Contact Voltage AC: 115V nominal
  • Contact Voltage DC: 28V
  • Contact configuration: Double-pole, double-throw (DPDT)
  • Switch operation: ON-ON
  • MS part number: MS90311-231

Related Products

Product Codes

  • Mfr Part No
    8869K4
  • MIL SPEC
    MS90311-231
  • ECCN
    EAR99
  • MIL SPEC
    MS90311-231
  • SCHEDULE B CODE
    8536.50.9065
