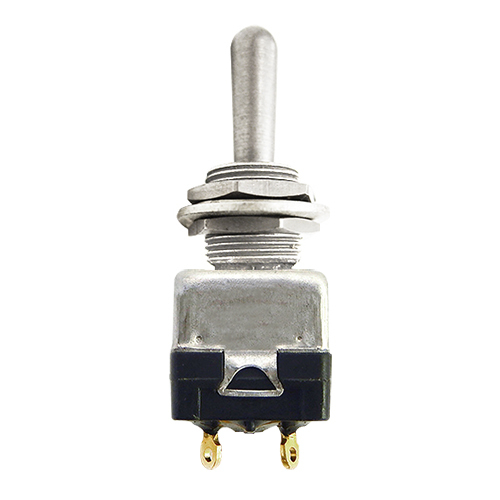

8869 Series Miniature Positive Action Toggle Switch | DP3T, ON-ON-ON

8869 Series Miniature Positive Action Toggle Switch | DP3T, ON-ON-ON

EATON

Call For Pricing
Available to order
EDMO # 8869K9
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 8869K series toggle switches have sealed bushings to protect from dust, moisture, and other contaminates. The miniature switches have a positive make and break action.

Version (EDMO# 8869K9) is a double-pole, 3-throw toggle switch. Positions: ON-ON-ON

Features

  • Threaded panel mount
  • Current rating versatility
  • Non-teasible mechanism for all but center "ON" circuits
  • Dry circuit (logic level loads) to power switching levels
  • Solder lug terminals
  • Wiping action contacts
  • Bushing seal or bonded seal per MIL-DTL-8834
  • MS approved and QPL'd per MIL-DTL-8834
  • Life: 20,000 operations at rated load 40,000 operations mechanical life

Specifications

  • Bushing:
    15/32" – 32 thread
  • Temperature Range:
    -67°F to 160°F (-55°C to 71°C)
  • Contact Current Max:
    5 A
  • Contact Voltage AC:
    115 VAC nominal
  • Contact Voltage DC:
    28 VDC
  • Contact Configuration:
    Double-pole, 3-throw (DP3T)
  • Switch Operation:
    ON-ON-ON
  • MS Part Number:
    MS21353-331
