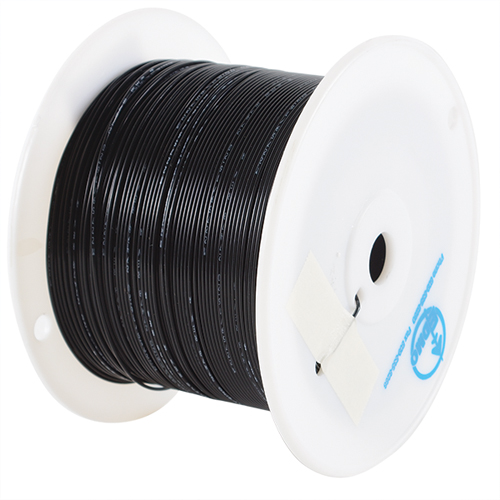

M22759/16 Extruded ETFE Tefzel Wire | 8 AWG, Black

Product Description

SAE AS22759 wire is a fluoropolymer insulated, single-conductor wire offering excellent performance for a variety of military aerospace and commercial applications. It has high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles as well as areas requiring overload stability, low smoke emission and fire resistance, such as aircraft cabins.

SAE AS22759/16 wire is designed for aerospace applications for commercial and military aircraft. It has a stranded tin-plated, copper conductor, Extruded ETFE dielectric, a rating of 600 volts and 150°C.

This M22759/16 tefzel hook-up wire (EDMO# 8G/16-0) has a tin-plated copper, 8 AWG conductor with extruded ETFE insolation, and colored black.

Specifications

• AWG:
  8 AWG
• Stranding:
  133/29
• Conductor Diameter:
  0.162 in
• Insulation Diameter:
  0.196 - 0.202 in
• Weight:
  61.5 lb/mft
• Max. Resistance @ 20°C:
  0.701 Ω/MFT

Product Codes

• Mfr Part No
  M22759/16-8-0
