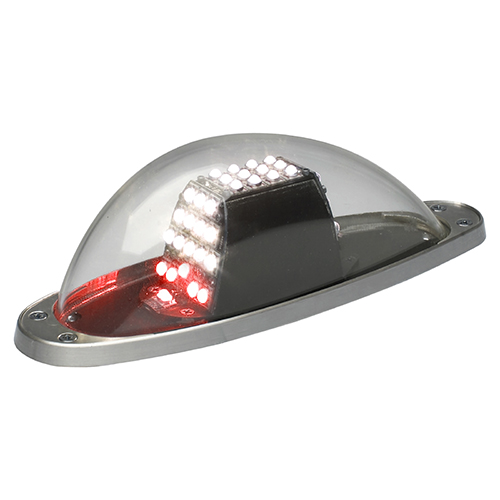

90325 Series LED Wingtip Anti-Collision Light | 28 VDC, Red

Product Description

The model 90325 and 71120 (current source) are an all LED solution to Cessna Citation Encore/Excel wingtip strobe legacy products manufactured by Whelen. The 90325 is a direct replacement for Whelen's 90206 wingtip products and will retrofit models 550, S550, 560 or is able to be modified to fit other wings of similar design.

This 90325 series LED wingtip anti-collision light (EDMO# 9032502) is a 28 VDC unit with red anti-collision lights.

Specifications

• Weight:
  1.2 lbs (544 g)
• Dimensions:
  10.24 x 3.11 x 2.61 in (260 x 79 x 66 mm)
• Voltage Rating:
  28 VDC
• Current Draw:
  0.85 A (Average), 4.5 A (Peak)
• Lense:
  Clear Hardcoated Polycarbonate
• LED Color:
  Red

Product Codes

• Mfr Part No
  01-0790325-02
• ECCN
  EAR99
