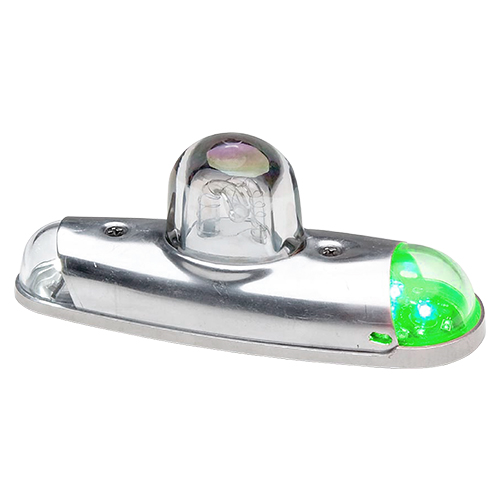

90340 Series Wingtip Strobe/LED RFI Shielded Position Light | 14 VDC, Green

Product Description

The Model 90340 Series is an all-inclusive wingtip mounted Strobe anti-collision/position light assembly utilizing LED's for both the forward & tail position lights, eliminating the need for a tail-mounted position light. The LED's provide a significant reduction in the current draw over conventional position light bulbs. The Strobe light lens assembly is radio shielded for maximum EMI/RFI protection. Direct replacement (Exact Footprint) for the Whelen Model A600PG/PR series without replacing the current strobe power supply. A single set of flying leads operates both forward & tail nav on 28 V version, and one set each of flying leads for the forward & tail nav on the 14 V version.

This Model 90340 Series Wingtip Strobe/LED RFI Shielded Position Light (EDMO# 9034001) is a 14 VDC unit with green LED lighting.

Specifications

• Dimensions:
  5.69 x 1.87 x 2.46 in
• Operating Voltage:
  14 VDC
• Input Current:
  0.5 A
• Lense:
  Clear Hardcoated Polycarbonate
• LED Color:
  Green

Product Codes

• Mfr Part No
  01-0790340-01
• ECCN
  EAR99
• TSO
  C96a Class II, C30c Type II & III
