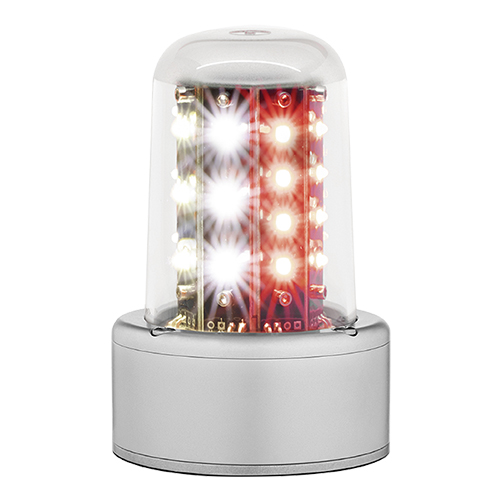

90520 Series LED Flashing Beacon | Red and White, 28 VDC, 5 Hole Mount, Flying Leads
WHELEN ENGINEERING
EDMO#: 90520-04
MFR#: 01-0790520-04
Description
The 90520 series LED beacons are FAA TSO compliant self-contained LED anti-collision lights (Ref. Class III 100 effective candlepower). They are designed to replace strobe lightheads as small as the A470A with available models to replace HR self-contained beacons (HRCFA) or our legacy 70900 LED beacon. Mounting plate included with assembly.
This 90520 series beacon (EDMO# 90520-04) has red and white LEDs, a 5 hole mount, flying leads, and runs on 28 VDC
Specifications
Weight:
0.65 lbs (295 g)
Dimensions:
2.6 x 3.74 in (66 x 95mm)
Voltage:
28 VDC
Current:
0.45 A (Average), 2.0 A (Peak) @ 3 sec
Lens:
Clear Polycarbonate
LED Color:
Red & White
Mounting Solution:
5 hole mount
Product Codes
Mfr Part No :
01-0790520-04
