ANTI COLLISION LIGHT/Red and white LED, 28V

WHELEN ENGINEERING

Call For Pricing

Available to order

EDMO # 9052005

MFR Part # 9052005

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

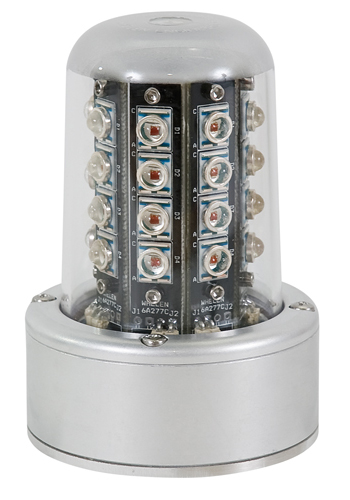

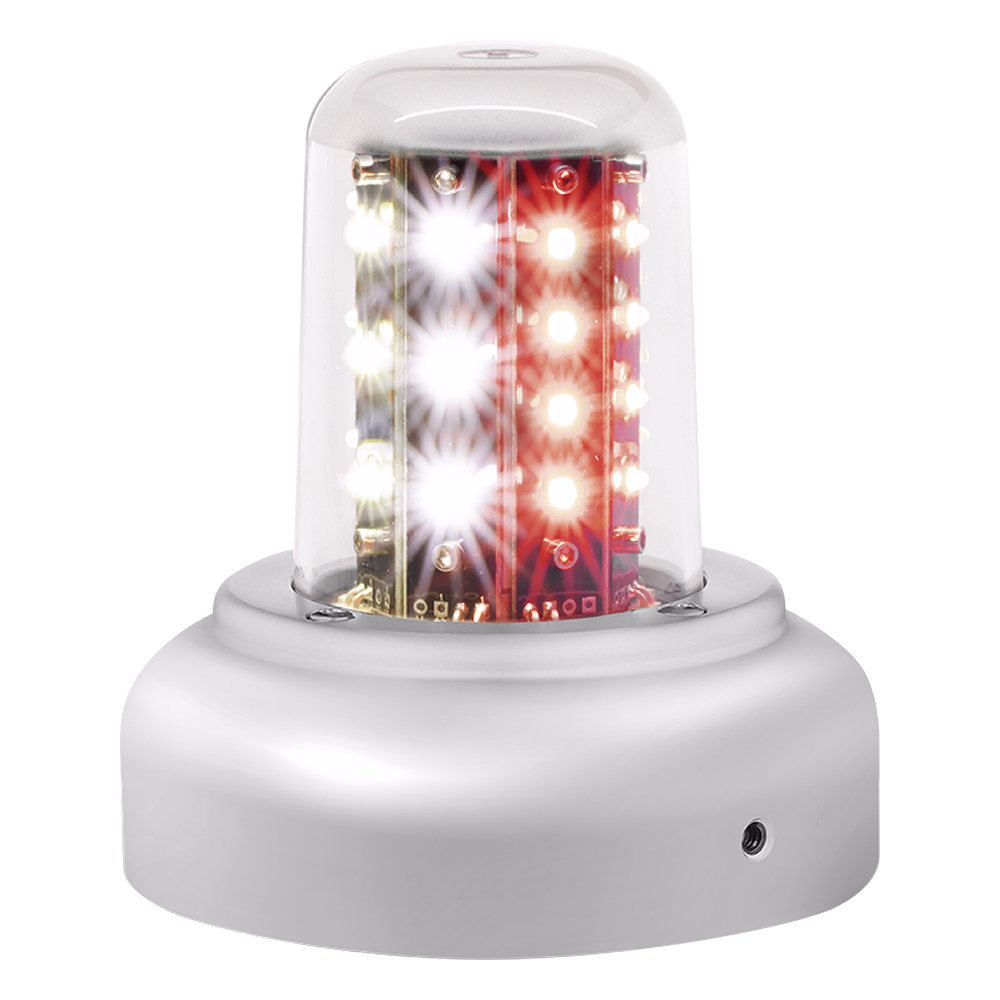

90520 series LED beacons are FAA TSO compliant self-contained LED anti-collision lights (Ref. Class I - 100 effective candlepower). They are designed to replace strobe lightheads as small as the A470A with available models to replace HR self-contained beacons (HRCFA) or our legacy 70900 LED beacon. Mounting plate included with assembly. Refer to models and descriptions below.

ELECTRICAL:
Models: -01, -04, -05, -14, -15-51, -55: Ship with 12"" Flying Leads
Models: -07, -17, -08, -18: MS3102R10SL-3P Connector

MECHANICAL:
Models: -04, -14, -08, -18 are designed to replace existing beacons utilizing a 5 Hole mounting pattern on 4.656 diameter bolt circle (Whelen 70285 series / 7090501 series or 70900 with A440 adapter).
Models: -05, -15, -07, -17 are 3-3/4"" opening designed to fit inside an A440 mounting adapter, mounting holes to fit in place of rotating beacons, Whelen model HRCFA, or 7090004, -05 series LED beacons
