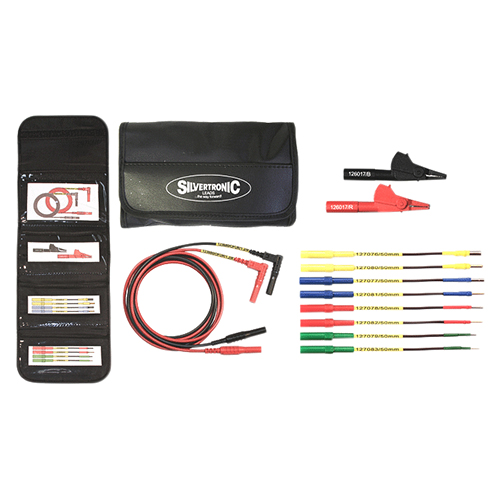

AVIONIC 30 ELECTRICAL TEST SET

SILVERTRONIC

Call For Pricing

Available to order

EDMO # 905312

MFR Part # 905312

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

An excellent tool for any avionic technicians arsenal, the Avionic Connector Test Lead Service Kit comes with two insulated crocodile clips, two plug lead assemblies, a set of eight 4 mm socket to connector leads, and a four-pocket storage pouch with easy-to-identify pockets for each series of kit components.

Kit Includes:

Red and Black Small Full Safety Insulated Crocodile Clips (126017):
Accept all 4 mm test lead plugs
7 mm jaw opening
Rated IEC 1010 300V CAT II 10 amps CE/UL/CSA compliant
Straight to Straight Plug Lead Assemblies (123680):
Compatible with all industry standard 4 mm instrument sockets
48-inch double-insulated bi-color silicone cable with 250+ copper strands for improved flexibility and performance
Silicone insulation for protection from heat and cold
Bi-color insulation makes it easier to spot exposed conductors
Rated IEC 1010 1000V CAT3 / 600V CAT4 20 amps CE/UL/CSA compliant
4 mm Socket to Connector Leads:
50 mm aero lead pin size 12 to 4 mm socket to female yellow (127076)
50 mm aero lead pin size 12 to 4 mm socket to male yellow (127080)
50 mm aero lead pin size 16 to 4 mm socket to female blue (127077)
50 mm aero lead pin size 16 to 4 mm socket to male blue (127081)
50 mm aero lead pin size 20 to 4 mm socket to female red (127078)
50 mm aero lead pin size 20 to 4 mm socket to male red (127082)
50 mm aero lead pin size 22 to 4 mm socket to female green (127079) 50 mm aero lead pin size 22 to 4 mm socket to male green (127083)
119519 4 Pocket Storage Pouch
4 pocket, Silvertronic storage pouch makes it easier to identify tools with tool identification cards displayed on the outside of each pocket
