MaxPulse Landing Light Dual Control Unit | 12-35V, 10A, Ring Terminals

MaxPulse Landing Light Dual Control Unit | 12-35V, 10A, Ring Terminals

SEATON ENGINEERING

EDMO#: 9200-000-B

MFR#: 9200-000-B

Call for Pricing

Call us at (800) 235-3300 to purchase.

The MaxPulse landing light controller is a solid state, compact and lightweight lighting controller. It features dual channels and provides Wig Wag and multiple rate control for any combination of LED, incandescent, and HID landing lights. The MaxPulse has an eight-position function mode switch.

Model 9200-000-B uses ring connectors with 10A max current per circuit.

Features:

  • Dual channel 10A circuit
  • Equipped with ring lug terminals
  • Solderless crimp ring connectors and reference panel label included
  • Wig Wag, multiple rate, and combination lighting control
  • Self contained design requires no outboard heat sinks, boxes, or rheostats
  • Increased visibility and safety
  • Works with LED landing lights, incandescent, and HID lights
  • Wig Wag and taxi light pulsing configurable
  • RTCA/DO-160G SEC 21: RFE qualified

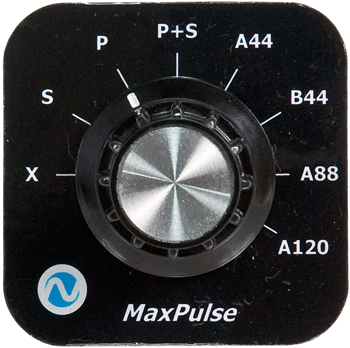

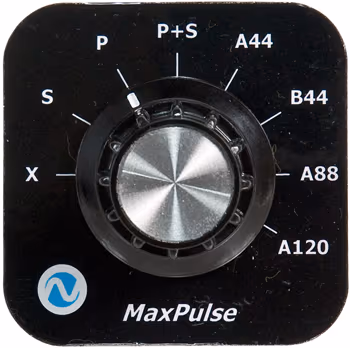

MaxPulse Function Modes:

X - Both Circuits Off
S - Starboard (right) on only
P - Port (left) on only
S+P - Both circuits On
A44 - Alternate 44 PPM (STD)
B44 - Both Flash 44 PPM
A88 - Alternate 88 PPM
A120 - Alternate 120 PPM

Weight:
1 oz

Dimensions:
Panel label 1.6 x 1.6 in
Control unit: 1.25 in (diameter)

Capacity:
120 Watts  @12 VDC
240 Watts  @24 VDC
280 Watts  @28 VDC
350 Watts  @35 VDC

Voltage range:
12 to 35 VDC

Max current:
10 A

Controlled output:
0 to 12/35 VDC
0 to 10 A

Operating temperature:
-30°C to +65°C

Approvals:
FAA PMA STC SA01800SE
RTCA/DO-160E Tested/Qualified
